Section 2. Avio Avionics Suite Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
24 Version 2.0 April 2007
e. Left Switch Panel (Essential Switch Panel)
The left switch panel is also considered the essential switch panel, as many
of the switches and controls on this panel have direct connections to the
associated component and do NOT require ACS control to function. The
item that requires ACS functionality to operate is the CABIN AIR SOURCE
switch that controls the position of the flow control valves. Left switch panel
functionality includes:
• Communications selections (headset/mask, Left or Right PFD)
• Mechanical Circuit Breakers (Left PFD, Left ACS)
• ELT Switch and Annunciation
• Five Electrical Contactor Switches (Generators x2, Batteries x2, Bus Tie)
• Oxygen Control and Pressure Display
• Cabin Air Control (Air Source and Cabin Dump)

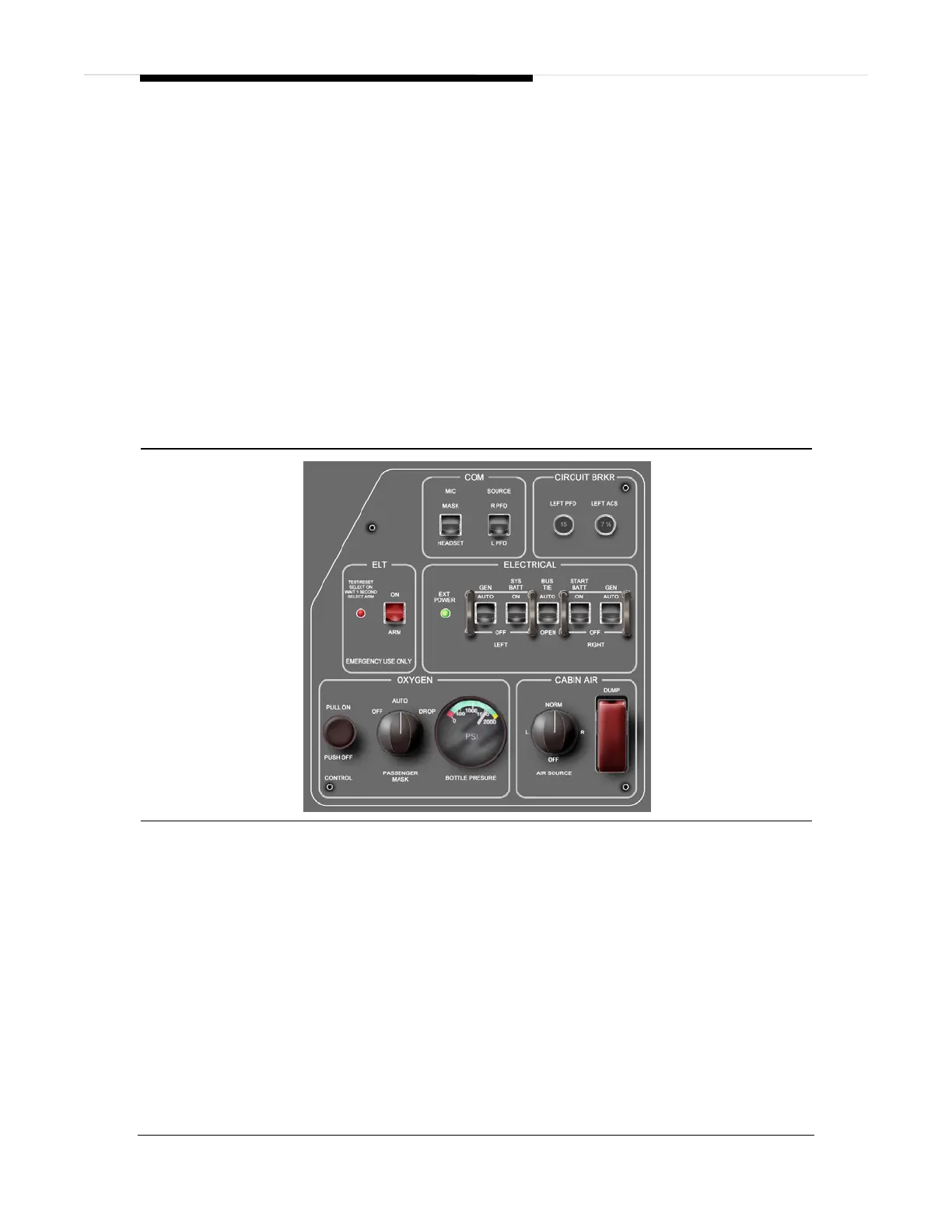

Figure 16. Left (Essential) Switch Panel
