Section 6. Ice Protection Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 105
6.7.2 Windshield Heat Failure
If either windshield fails for a reason other than an overheat, L (R) WSHLD HEAT
FAIL caution message appears. Failure is also indicated on the ICE protection
synoptic by the windshield outline turning amber.

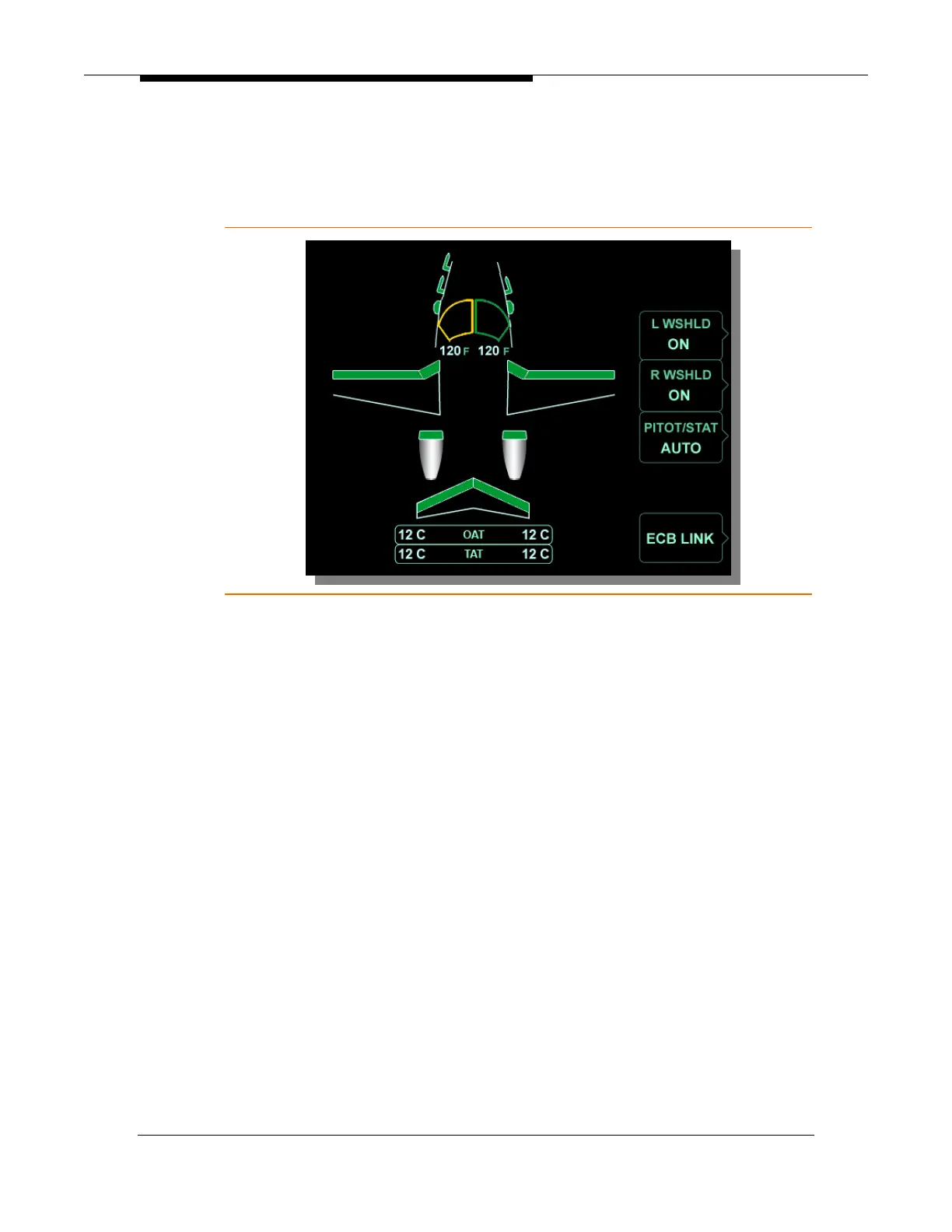

Figure 70. Windshield Heat Failure
