8.4.14 Oil Filter Status (Impending Oil Filter Bypass)

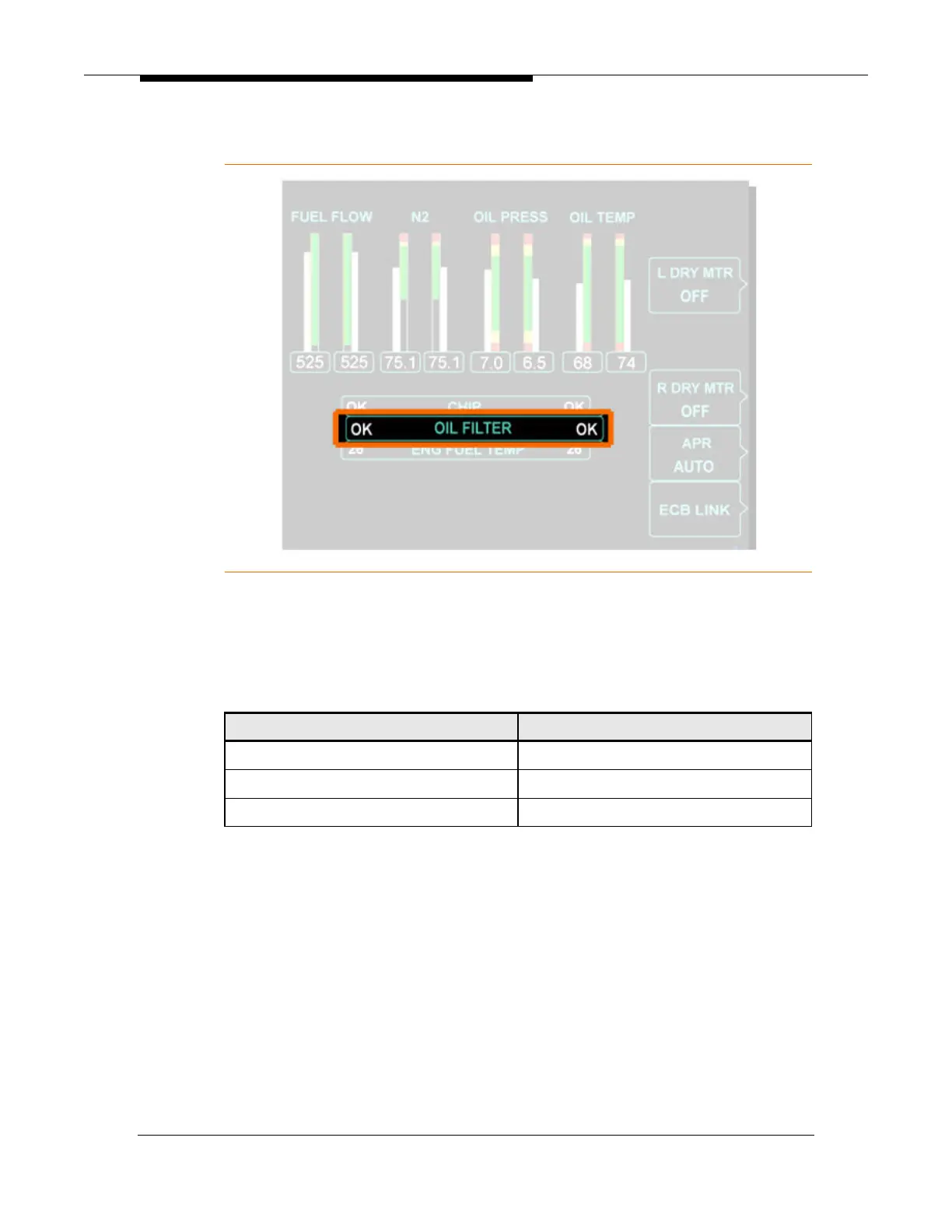

Figure 106. Oil Filter Display
If the ACS detects an impending oil filter bypass, a L (R) ENG OIL FILTER advisory
message appears and an indication is displayed on the OIL FILTER display at the
bottom of the engine synoptic page. The display has three states:
Table 18. Impending Bypass Color Indications
Situation Display
Normal OK (white)
Bypass Switch Failed --- (White)
Oil Filter Impending Bypassed IMP BYP (White)
