Eclipse 500 - Figure 9.Passenger Oxygen

Section 1. Aircraft Overview Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
12 Version 2.0 April 2007
1.7.3 Oxygen
The airplane is equipped with an oxygen system for use by the pilots and passengers
in the event of a loss of cabin pressurization or presence of smoke or fumes in the
cockpit. The Eclipse 500 is equipped with either a 22 cubic foot oxygen bottle or an
optional 40 cubic foot oxygen bottle. The 40 cubic foot bottle option also includes a
right pilot seat quick donning mask. There are four constant flow oxygen masks for
the rear passenger seats as well as a constant flow oxygen mask for the right front
passenger/pilot seat.

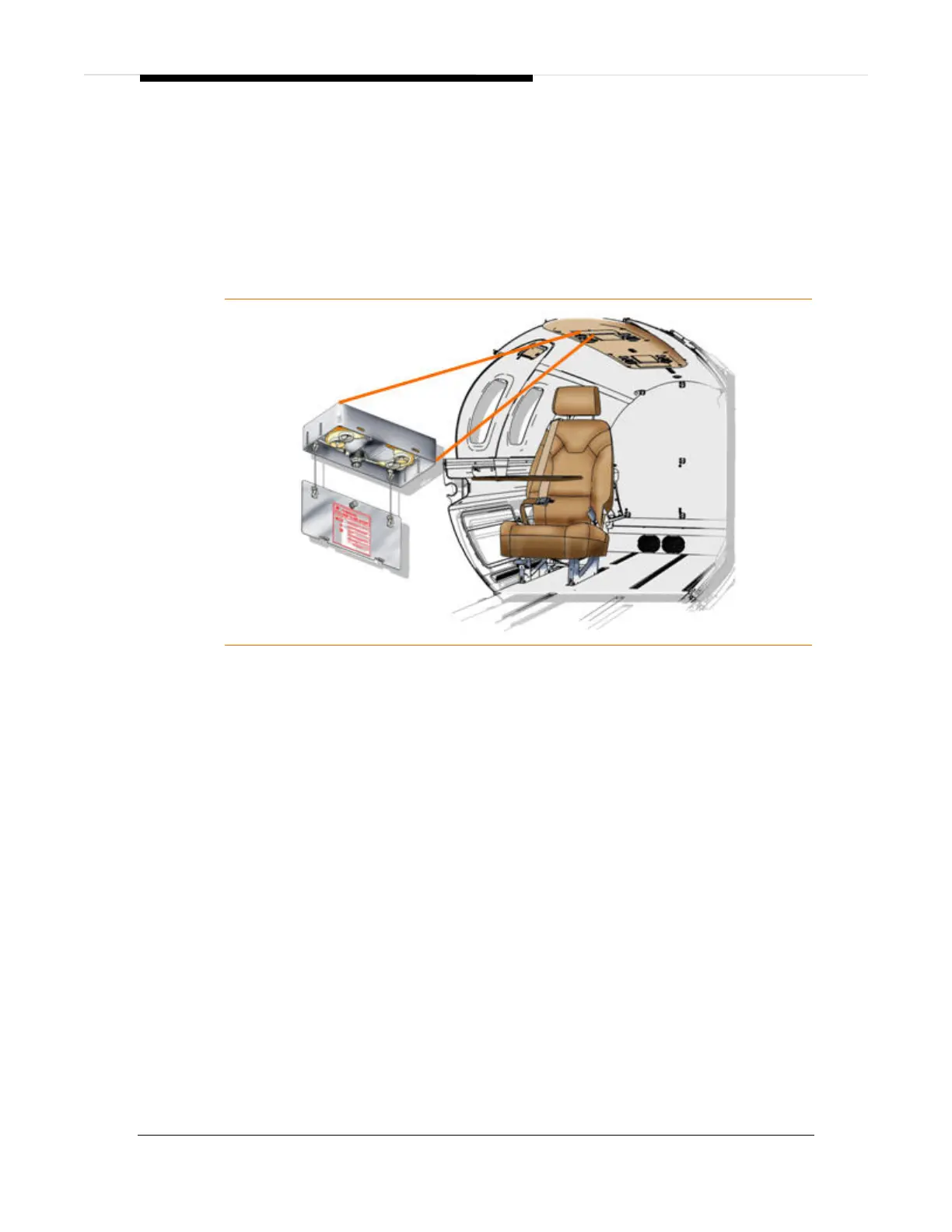

Figure 9. Passenger Oxygen
