4.4.3 Landing Gear Position Annunciation
A position annunciation for each gear is displayed on the upper portion of the MFD.

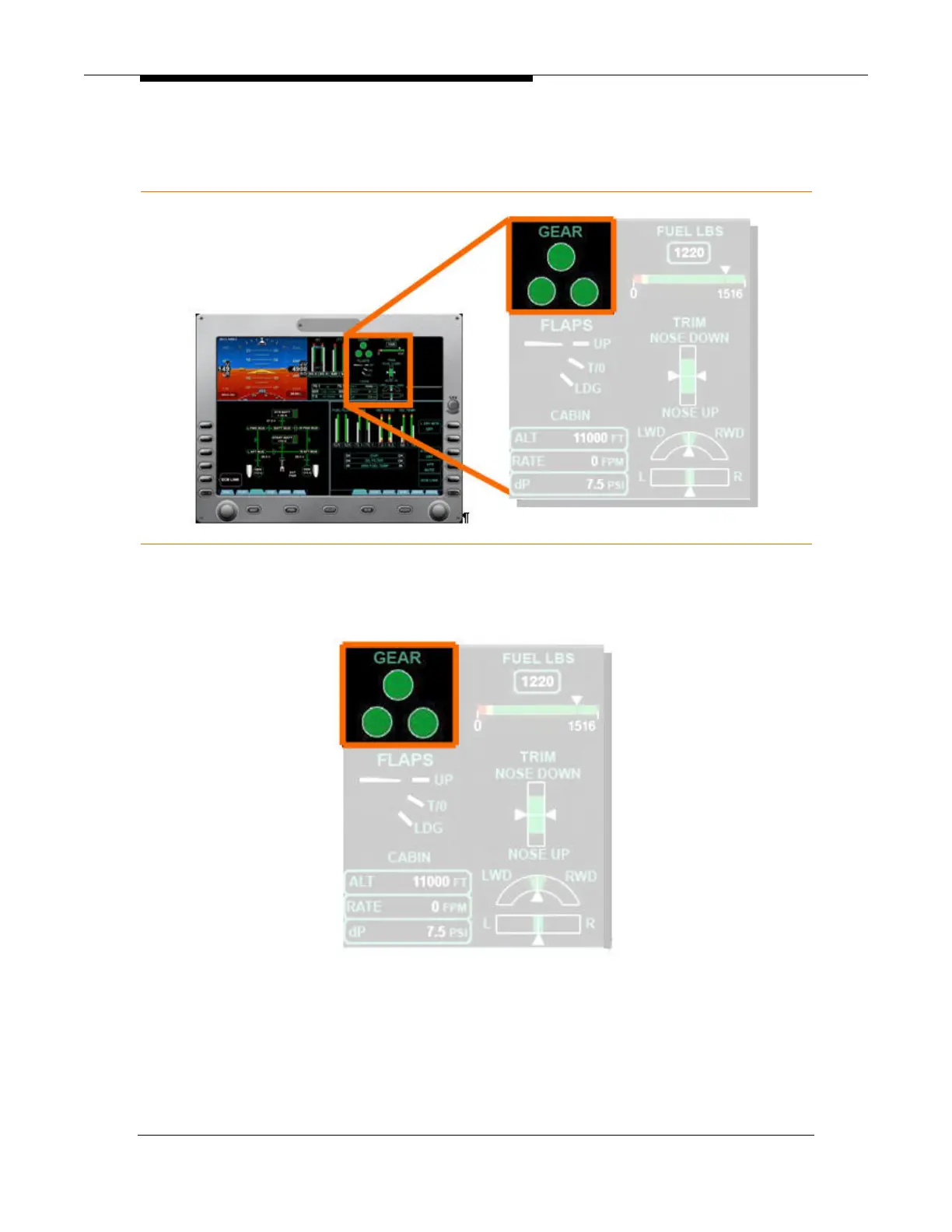

Figure 40. Landing Gear Position Annunciation

A green circle with white border indicates the gear is Down and Locked.
