Section 4. Landing Gear and Brakes Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
58 Version 2.0 April 2007

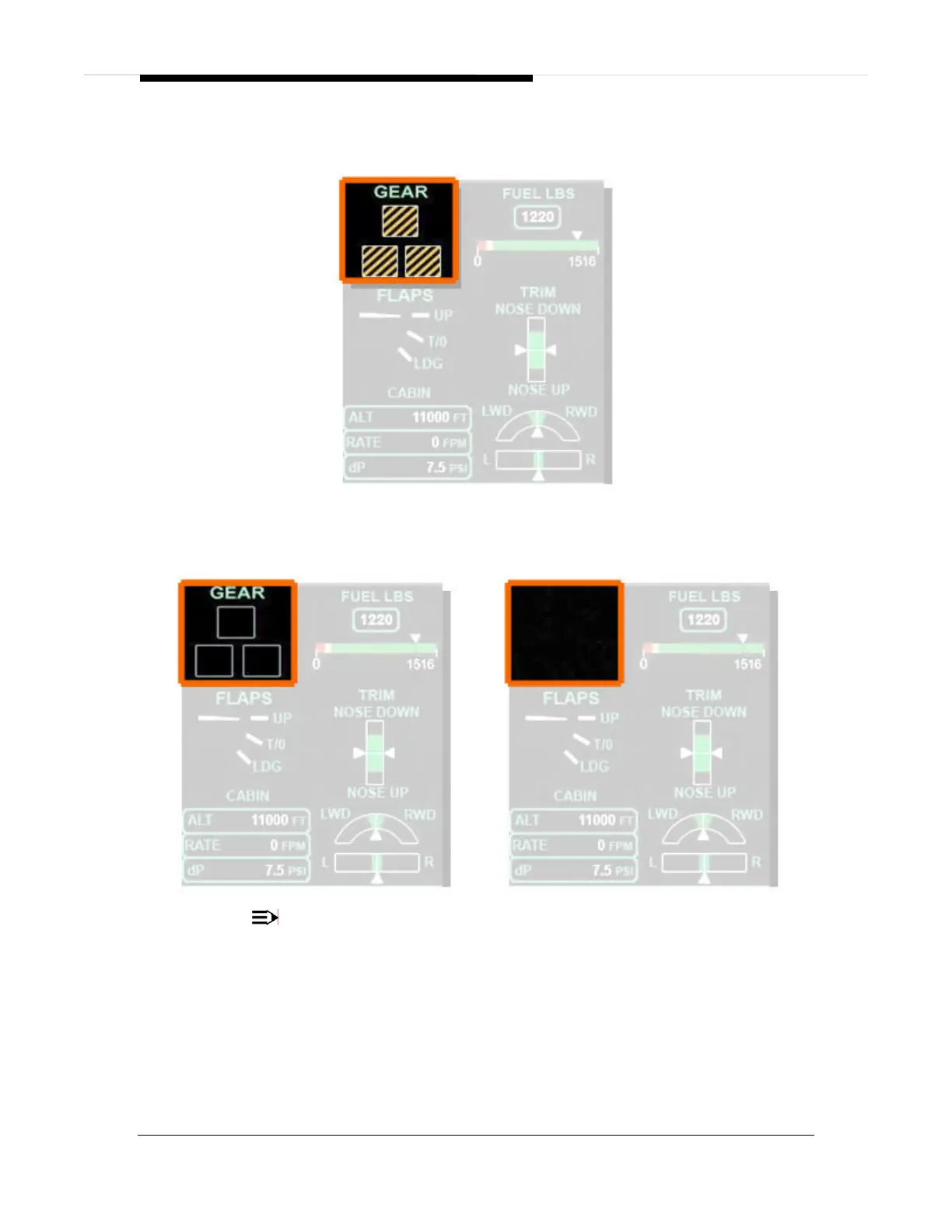

A amber hatched square indicates the gear is in transit
A hollow white square indicates the gear is Up and Stowed.
When all three landing gear are Up and Stowed for ten seconds, the white
squares will disappear.
NOTE:
During composite mode operation on the PFD, when gear is displayed on
the upper right hand portion of the PFD, gear Up and Stowed position
annunciation does not disappear after ten seconds.
If any indicator is not Up and Stowed or Down and Locked, the entire display
stays in view and the failed gear is indicated with amber hatched squares. If any
gear is in transit for more than 15 seconds, a LANDING GEAR FAIL caution
message appears and the in-transit symbol remains displayed.
