Eclipse 500 - 3.2 Aircraft Computer System (ACS) Interfaces

Section 2. Avio Avionics Suite Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
16 Version 2.0 April 2007
Center Switch Panel
Right
PFD
Left
ISS
Right
ACS
Left
ACS
L KBD
Autopilot Control Panel
Left
PFD
Optional
R KBD
MFD
Right
ISS
Shared
Aircraft
Systems
Center
Pedestal
Engine
Start
Switches
Left
Sidestick
Right
Sidestick
ACS-PFD Communications Bus
Left Byteflight Bus
Right Byteflight Bus
ACS-Aircraft Systems Buses
ACS-PFD Communications Bus
ACS-Aircraft Systems Buses

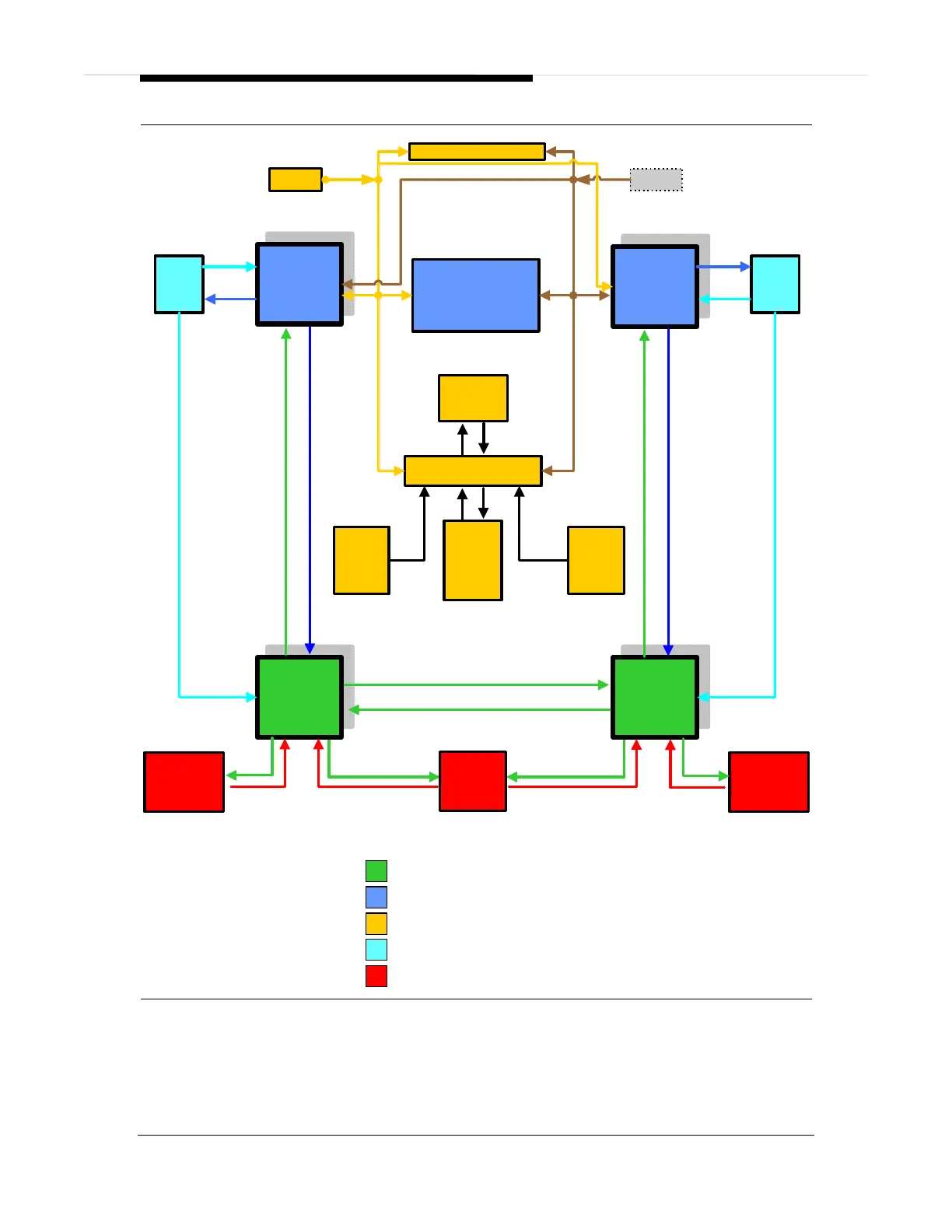

THE FIVE MAJOR FUNCTIONAL AREAS OF AVIO
Aircraft Computer Systems
Pilot Displays
Pilot Controls
Primary Sensors
Aircraft Subsystems
Left ACS
Aircraft
Systems
Right ACS
Aircraft
Systems
Figure 11. Avionics Architecture
