Section 7. Fuel Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 121
R PUMP ....................................................................................................... AUTO / ON
XFEED .................................................................................AUTO / L→R / L←R / OFF
The ECB LINK line select key opens the Electronic Circuit Breaker (ECB) page to
access fuel ECBs.
ESTIMATED FUEL QUANTITIES
Estimated fuel used and estimated fuel remaining are displayed at the bottom of the
fuel synoptic. A snapshot of the total fuel is taken at engine start, and then fuel used
and fuel remaining are calculated using fuel flow.
Estimated fuel quantity is independent of the gauging system, and serves as a
backup in the event of a gauging system failure. A significant difference in the
estimated and gauged fuel quantity might also be an indication of a fuel leak.

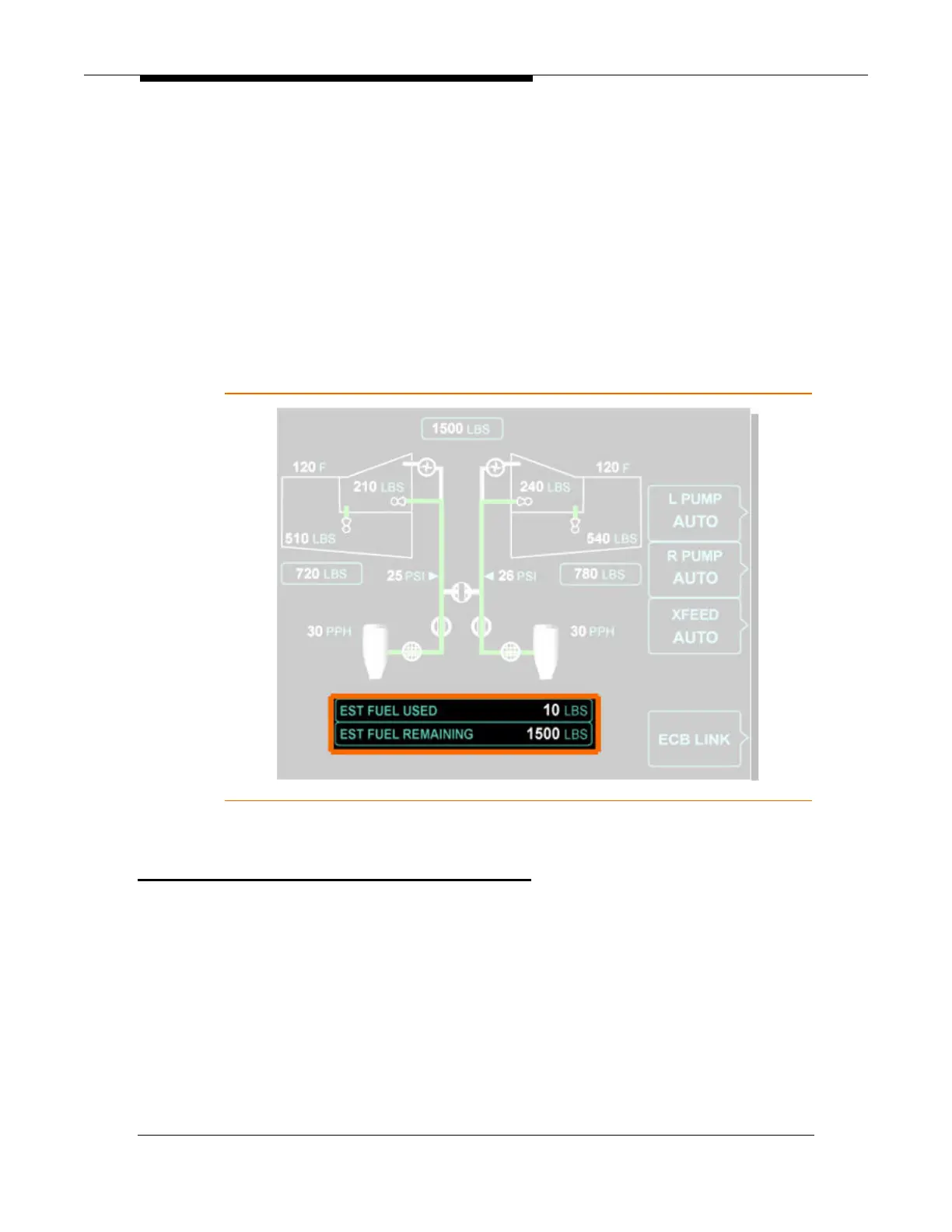

Figure 79. Estimated Fuel Used & Estimated Fuel Remaining Display
