Center Switch Panel
Right
PFD
Left
ISS
Left
ACS
L KBD
Autopilot Control Panel
Left
PFD
Optional
R KBD
MFD
Right
ISS
Engine
Start
Switches
ACS-PFD Communications Bus
Left Byteflight Bus
Right Byteflight Bus
ACS-PFD Communications Bus
ECBU #4
Left ACS Communications Bus
Sensor Information to ACS’
Right
ACS
Right ACS Communications Bus
Left Flow
Control Valve 1
Air
Conditioning
Condenser
Fan
Left Flow
Control Valve 2
Left Side Sensors
-Cabin Zone Temperature Sensor
-Aft Evaporator Temperatures
-Bleed Air Over Temp Sensor
-Pylon Over Temp Sensor
Sensor Information to ACS’
Cabin Air Source Selector
Aft Evap Fan-
LOW
Aft Evap Fan-
MED
Aft Evap Fan-
HIGH
Isolation
Valve
ECBU #5
Right Flow
Control Valve 1
Right Flow
Control Valve 2
Fwd Evap Fan-
LOW
Fwd Evap Fan-
MED
Fwd Evap Fan-
HIGH
Isolation
Valve
Left Flow Control
Valve
Air Conditioning
Condenser Fan
Isolation
Valve
Aft Evaporator
Fan
Fwd Evaporator
Fan
Right Flow Control
Valve
Right Side Sensors
-Cockpit Zone Temperature Sensor
-Fwd Evaporator Temperatures
-Bleed Air Over Temp Sensor
-Pylon Over Temp Sensor
Outflow
Valve

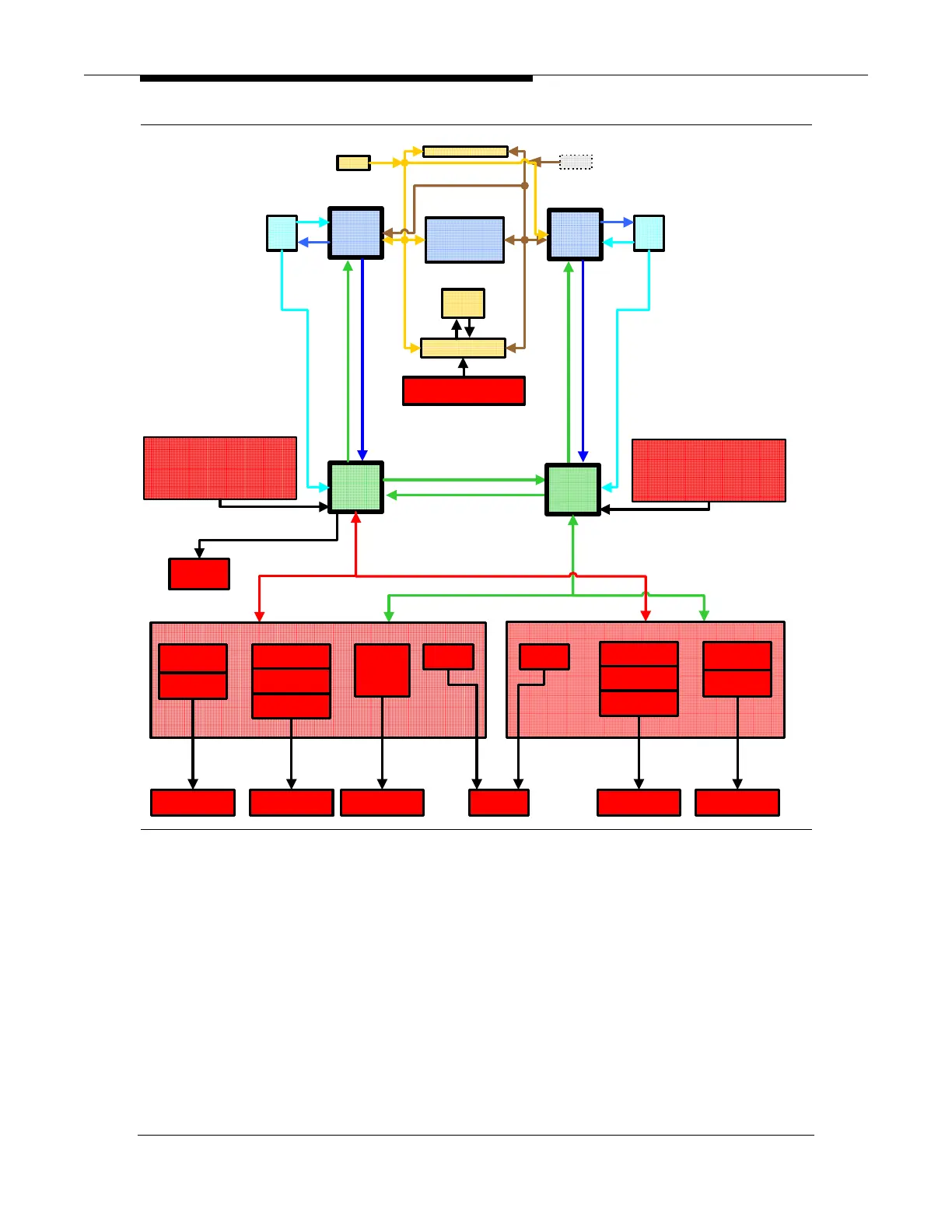

Figure 119. Climate Control System-ACS Interface
