Section 9. Climate Control Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
210 Version 2.0 April 2007

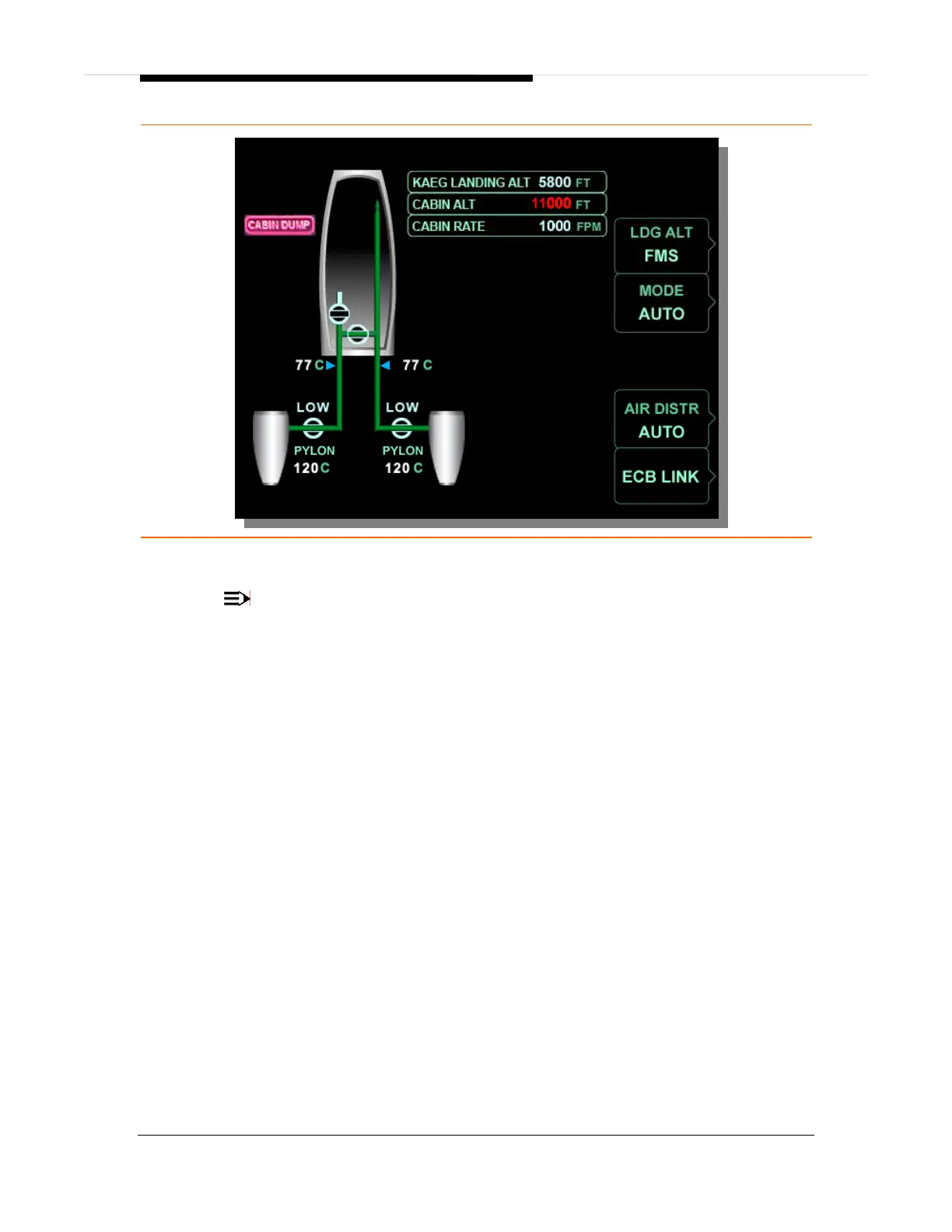

Figure 137. Cabin Dump- PRESS Synoptic
NOTE:
The cabin dump switch dumps the cabin to 13,500 ft +/- 1500 feet.
SMOKE CLEARING
In the event of smoke in the cabin, the smoke and fumes evacuation checklist
requires the cabin DUMP switch to be activated . This opens both outflow valves,
routes all air forward to facilitate forward-to-aft airflow; and sets the forward
evaporator speed to high to vent the smoke overboard.
