Section 11. Interior Lighting Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 249
11.5.4 Map Lights
The map lights consist of two groups of focused LED located under the glare shield
for map reading in the cockpit, with one group on either side of the cockpit. A switch
on the autopilot control panel is used to activate each light. The co-pilot light is
operated by an identical knob on the right side of the autopilot control panel.

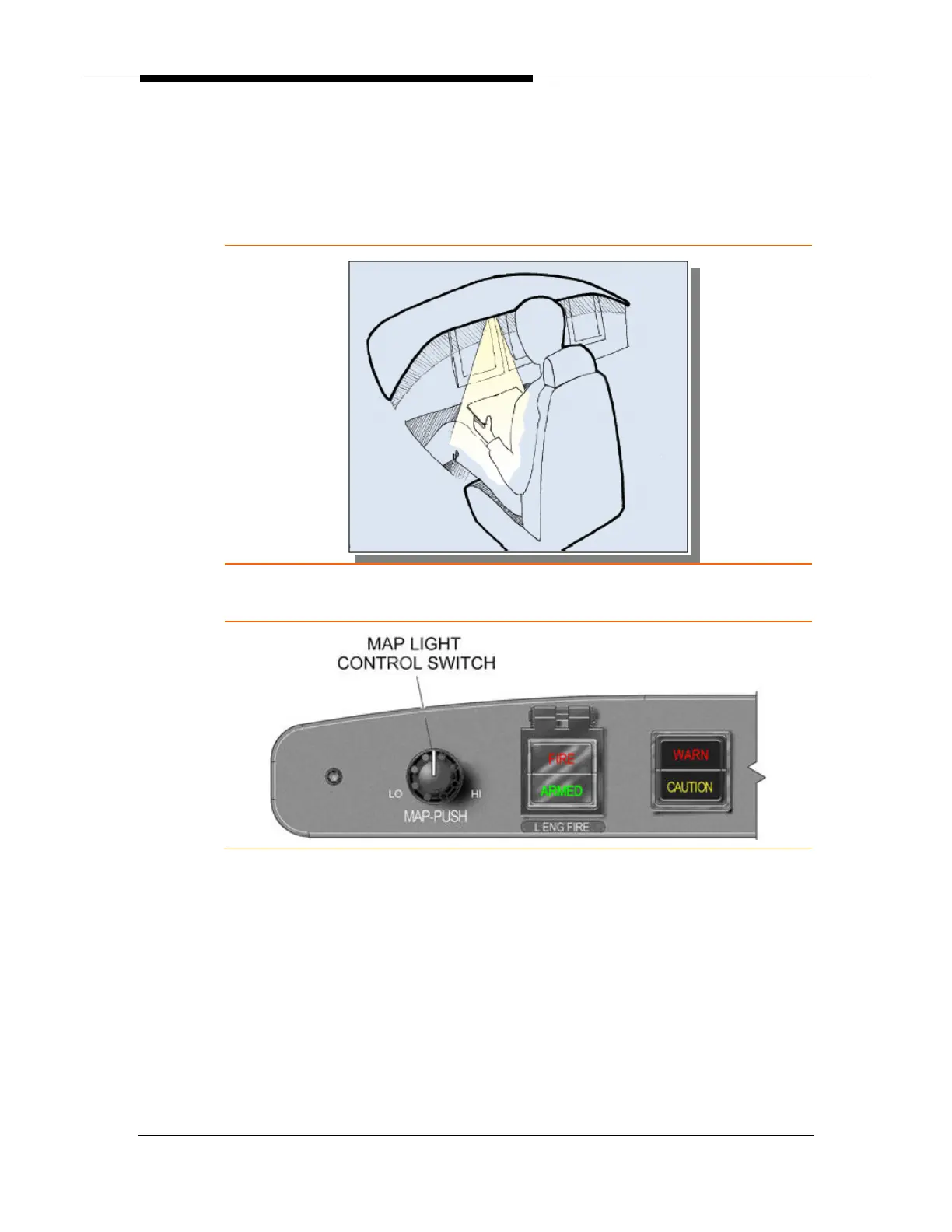

Figure 150. Map Lighting
Figure 151. Map Light Control
