Section 12. Exterior Lighting Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 263
ECBU #5
Center Switch Panel
Right
PFD
Left
ISS
Left
ACS
L KBD
Autopilot Control Panel
Left
PFD
Optional
R KBD
MFD
Right
ISS
Engine
Start
Switches
ACS-PFD Communications Bus
Left Byteflight Bus
Right Byteflight Bus
ACS-PFD Communications Bus
ECBU #4
Left ACS Communications Bus
Right
ACS
Right ACS Communications Bus
Left Anti-Collision Light
Tail Anti-Collision Light
Right Anti-Collision Light
LAND Switch
Left Taxi/Recog Light
Left Landing Light
Beacon Light
Position Lights
Right Landing Light
Right Taxi/Recog Light
ECBU #1
Wing Inspection Light
TAXI/RECOG Switch
STROBE/BEACON Switch
INSP LIGHT Switch

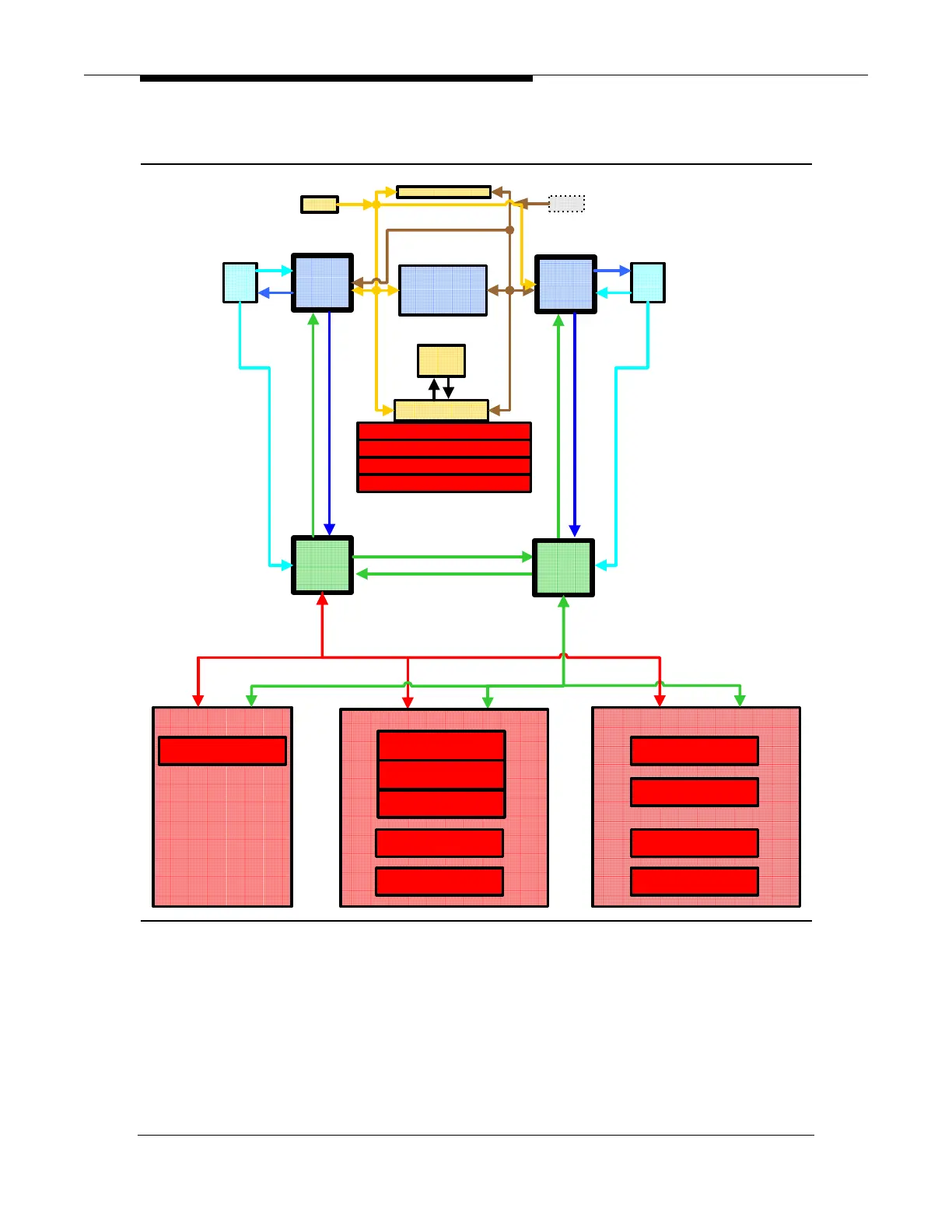

Figure 161. Exterior Lighting-ACS Interfaces
