12.4 Controls and Indicators
All exterior lighting is controlled with switches located on the center switch panel
under two EXT LIGHT sub panels.

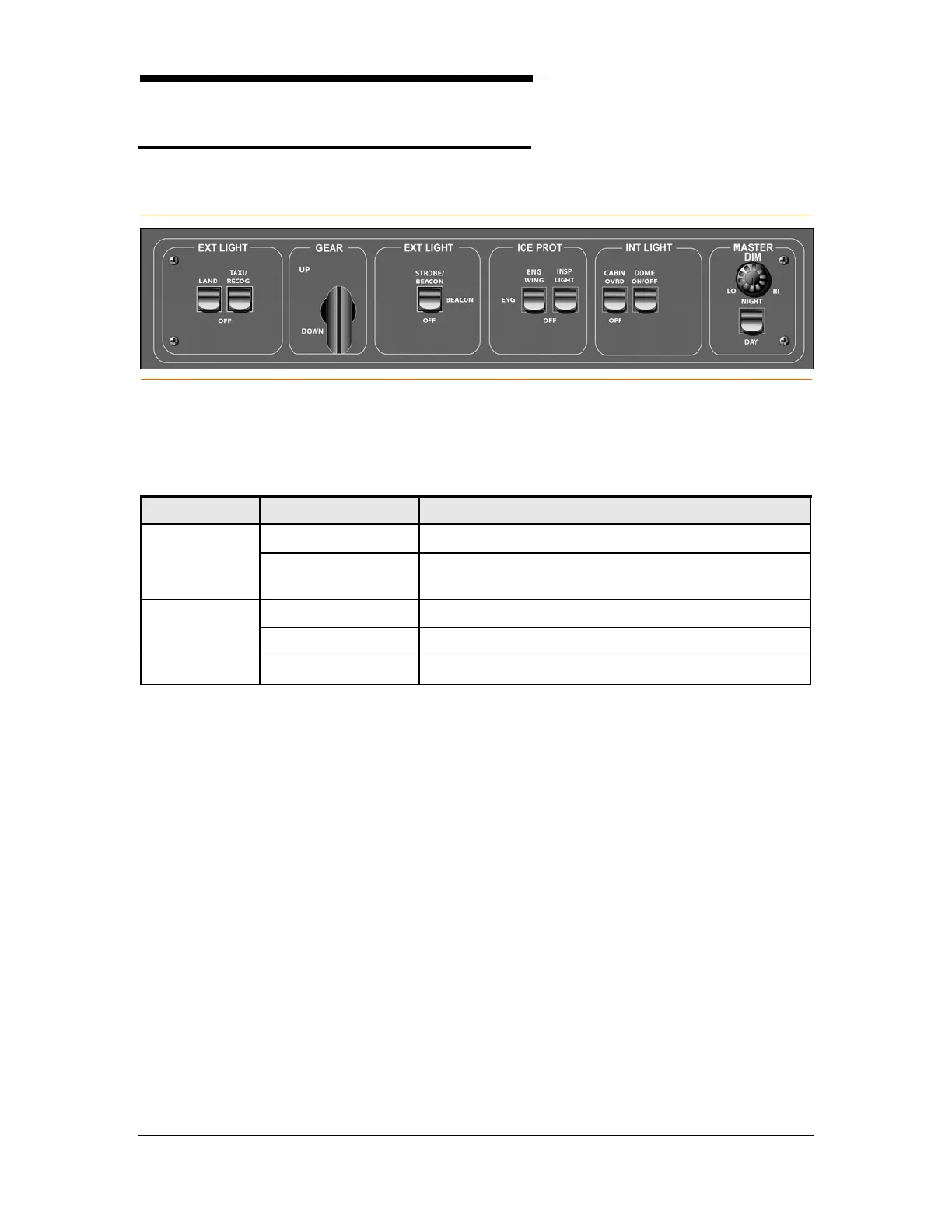

Figure 162. Center SWITCH Panel- Standard
12.4.1 Center SWITCH Panel- Standard
Table 33. Exterior Lighting Switch Functions
Sub Panel Switch Nomenclature Control
LAND Left and Right Landing Lights
EXT LIGHT
TAXI / RECOG
Left and Right Taxi Lights (Steady on ground and
alternating flashing in air)
STROBE/BEACON Left, Right Wing and Tail Strobes & Flashing Beacon
EXT LIGHT
BEACON Flashing Beacon only
ICE PROT INSP LIGHT Ice Inspection Light
