Section 13. Air Data Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
284 Version 2.0 April 2007
13.5 Controls and Indicators
13.5.1 Sensor Selection
In the event that sensors disagree or on pilot preference, air data source selection is
possible through the SENSOR synoptic on the MFD. Two line select keys allow
selection of the AHRS and ADC information that is used by the PFDs. A BARO-SET
line select key is also available for a secondary means of altimeter entry (primary
source is the BARO SET knob on the Autopilot Control Panel).
LINE SELECT KEYS:
AHRS SRC
AUTO...........................................................AHRS automatically selected by ACS.
1............................................................. Left and Right PFD using Left (#1) AHRS.
2.......................................................... Left and Right PFD using Right (#2) AHRS.
ADC SRC
AUTO............................................................. ADC automatically selected by ACS.
1............................................................... Left and Right PFD using Left (#1) ADC.
2.............................................................Left and Right PFD using Right (#2) ADC.
BARO-SET
Altimeter setting between 22.50 through 34.50 inches Hg entered using concentric
knob on MFD. Pressing inner knob sets standard 29.92 in Hg

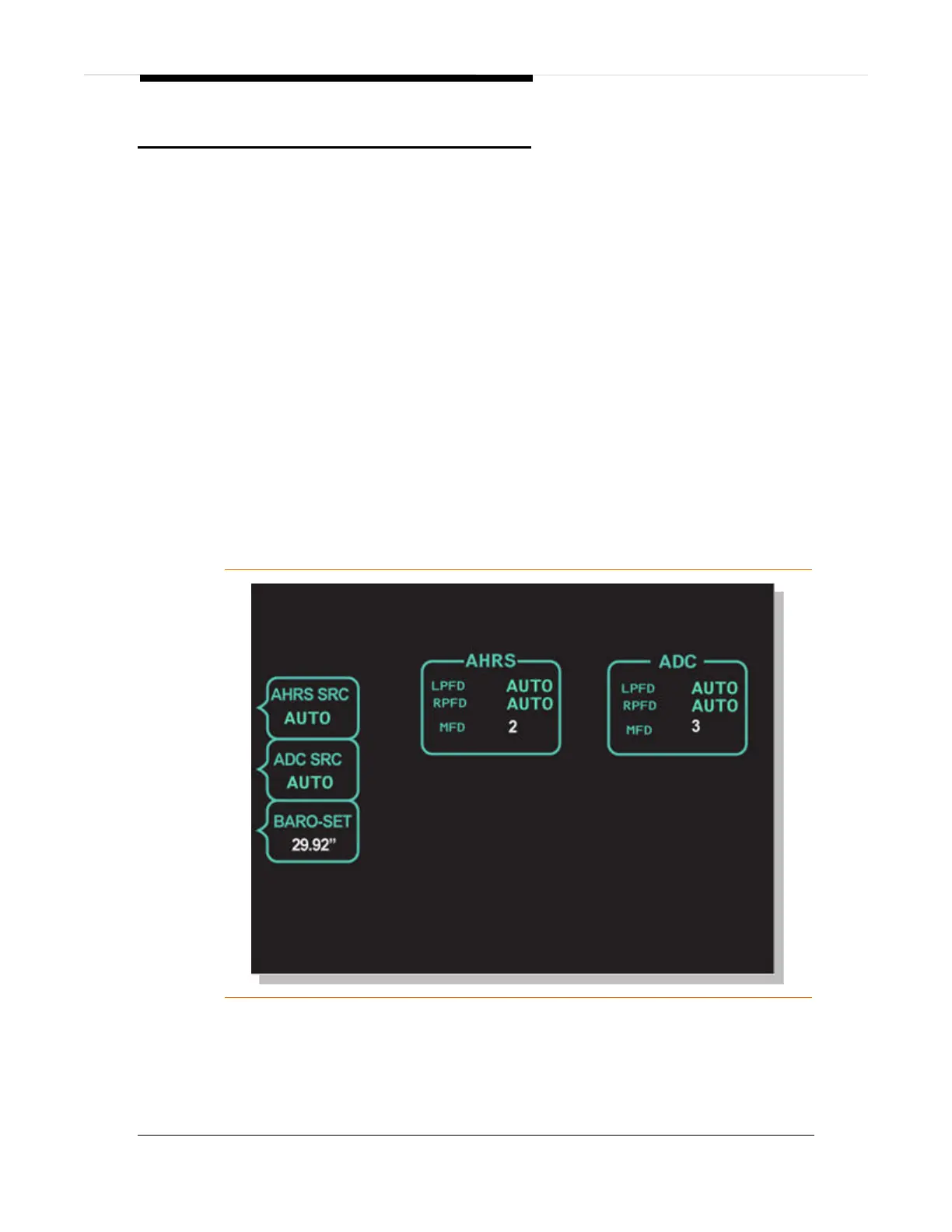

Figure 171. SENSOR Synoptic Page
