AIRSPEED INDICATOR
The airspeed indicator consists of a scale, numerical labels, trend vector, reference
markings, airspeed bugs, and Mach number display.

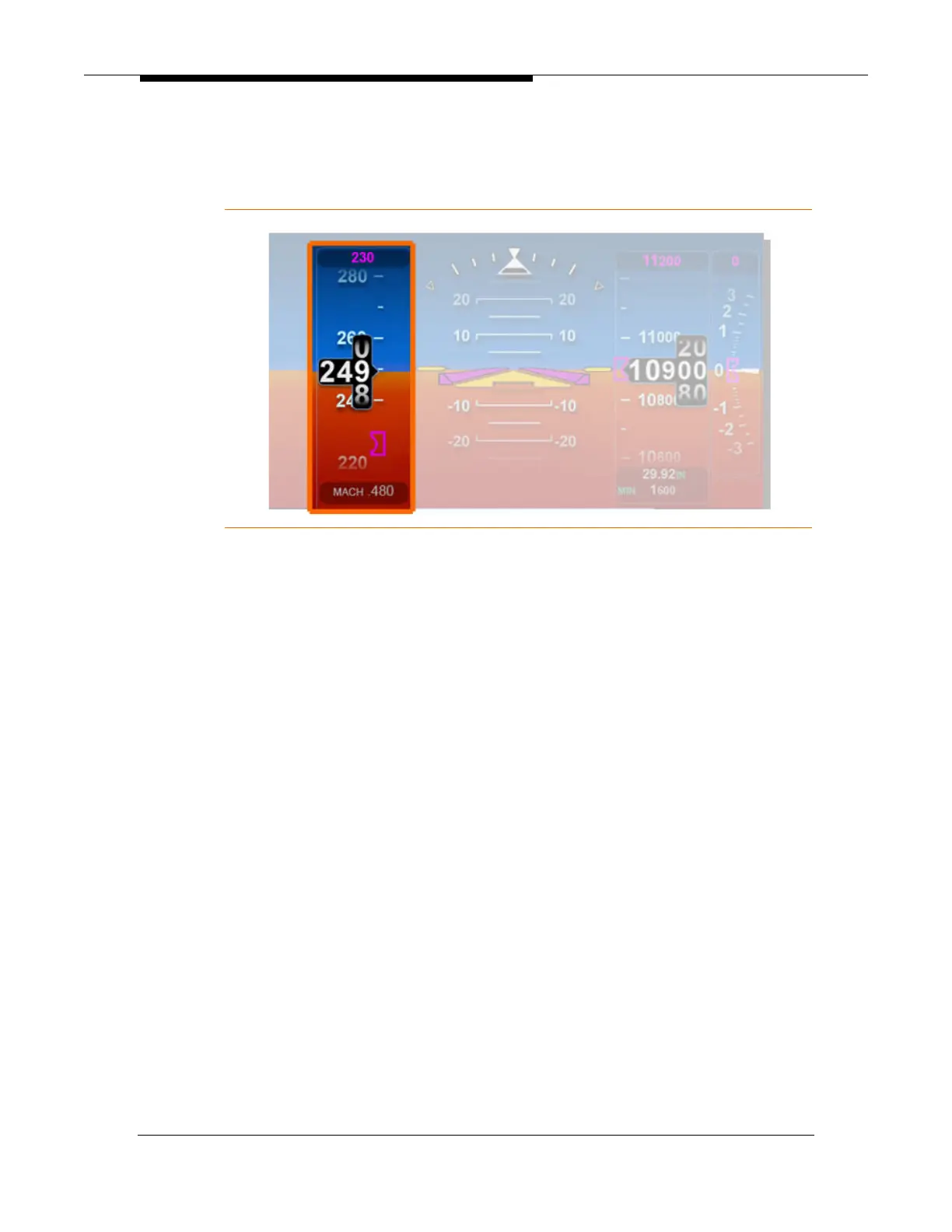

Figure 180. Airspeed Indicator- PFD
Airspeed Tape
The airspeed indicator tape is displayed on the left portion of tile 2. The airspeed
scale is displayed in Knots Equivalent Airspeed (KEAS), labeled every 20 knots,
with a 60 knot rage continuously visible. There are larger unlabeled tick marks
every 10 knots. The current airspeed is a rolling digit presentation in the center
of the scale displayed as a black filled airspeed window with white digits.
