If navigation signal is lost or invalid, the HDI pointer is removed, the associated
text turns red and a red X covers the HDI.

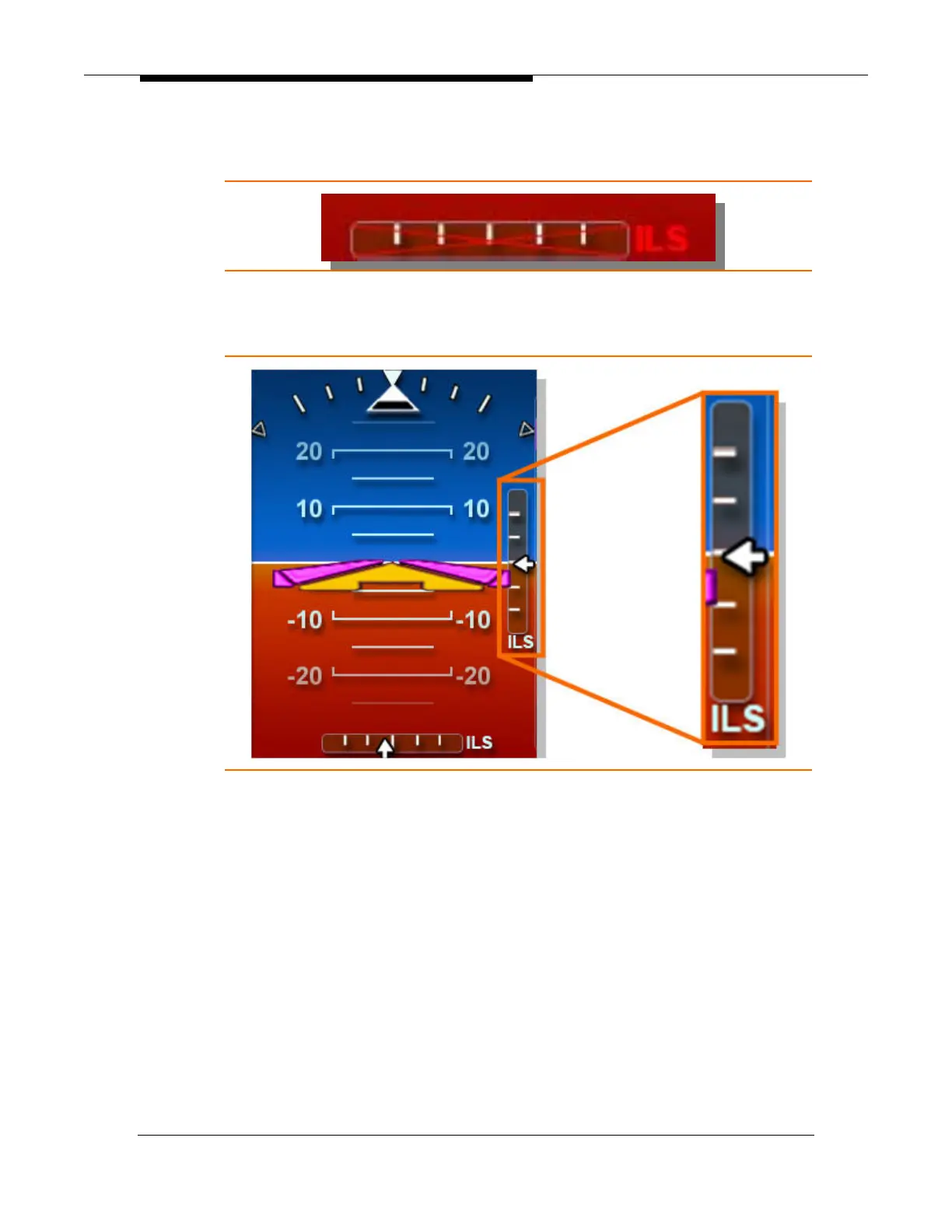

Figure 193. Horizontal Deviation Indicator- Signal Loss
Vertical Deviation Indicator (VDI)
Figure 194. Vertical Deviation Indicator (VDI)
The PFD displays a vertical deviation (glide slope) indicator when VLOC1 or
VLOC2 is tuned to and receiving a localizer frequency.
