15.3.2 Multi Function Display (MFD) Layout
The MFD is organized into eight tiled areas that display all pertinent standby
indications and systems information. The upper portion of the MFD is permanently
displayed, while the lower tiles are configurable.

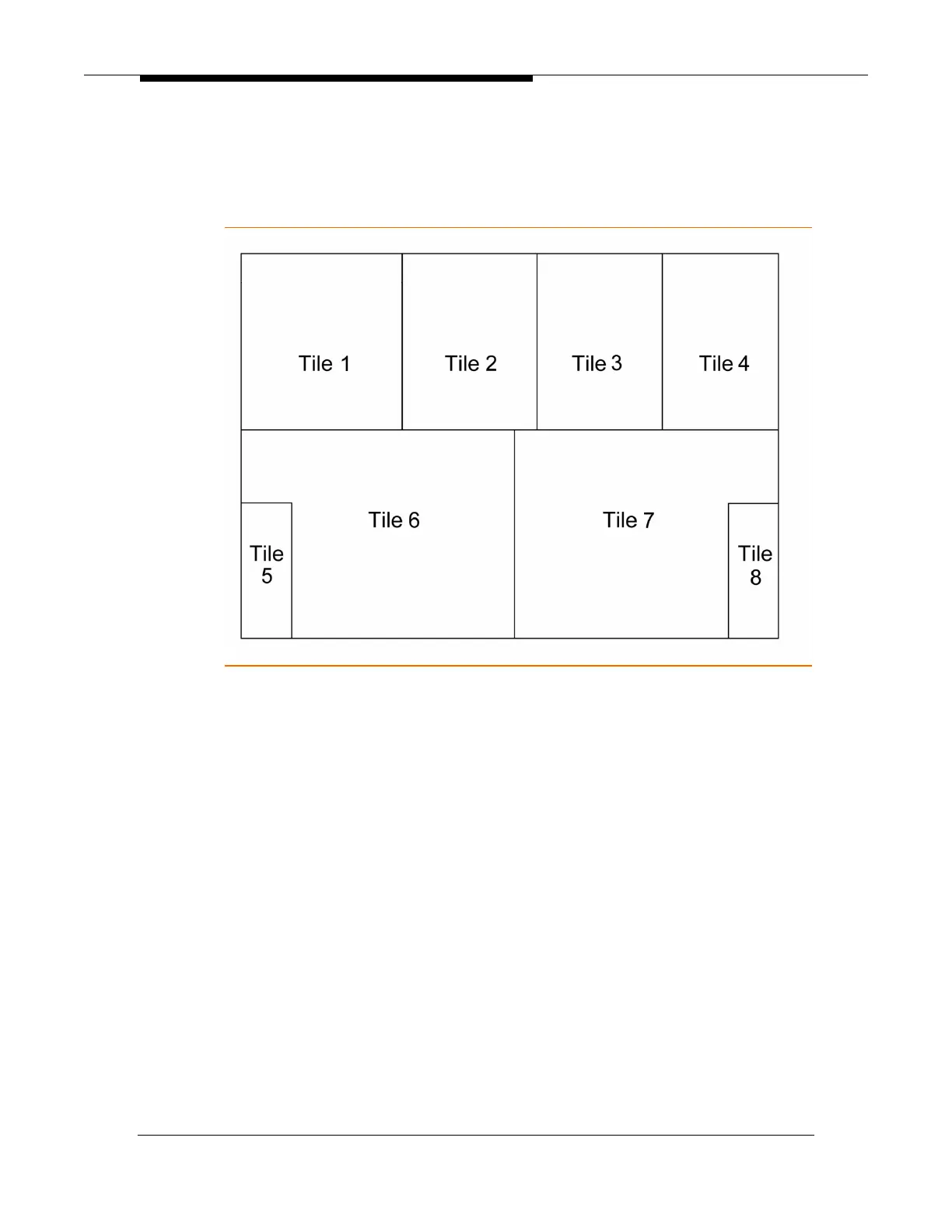

Figure 234. MFD Tile Layout
Tile 1
MFD Attitude Direction Indicator (ADI)
Tile 2
Engine Instruments
⎯ N1 Tape
⎯ ITT Tape
⎯ N2 Digital Display
⎯ Fuel Flow Digital Display
⎯ Oil Pressure Digital Display
Tile 3
Landing Gear Status
Flap Position
Cabin Pressurization
⎯ Current cabin altitude
⎯ Current cabin altitude rate of climb
⎯ Cabin differential pressure (dP)
Fuel Quantity Indicator
Trim Position
⎯ Pitch
⎯ Roll
⎯ Yaw
Tile 4
CAS Message Window
Tile 5
Tile 6 line select key options
Tile 6
Configurable
Tile 7
Configurable
Tile 8
Tile 8 line select key options
