15.5.4 Fuel Flow

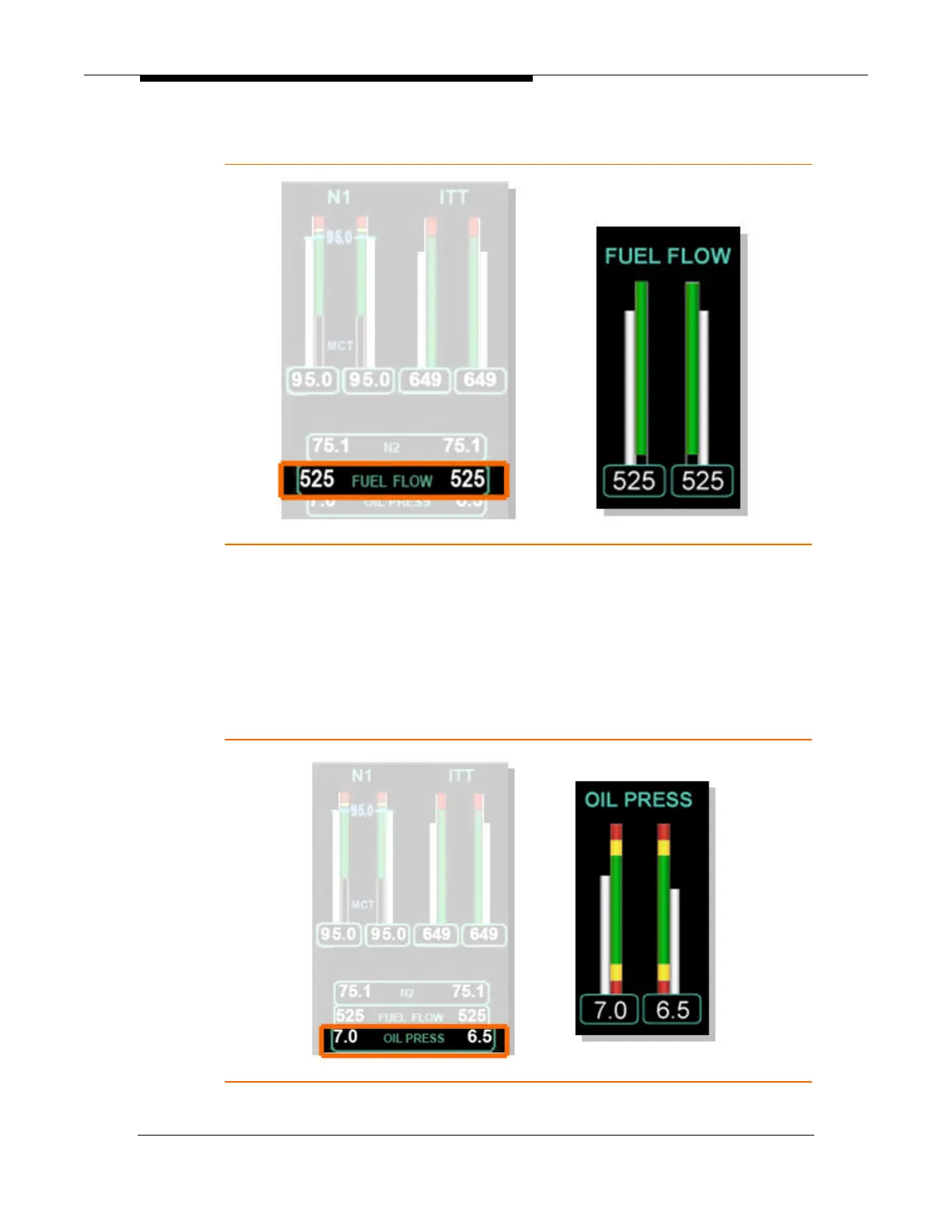

Figure 241. Fuel Flow Display
Fuel flow is continuously displayed on the MFD with a digital readout in pounds per
hour (PPH) and with a white moving tape and digital readout on the ENG synoptic
page. The scale of the tape is 0-800 PPH. An adjacent tape displays fuel flow range
with a green band extending from 60 PPH to the top of the tape. There are no amber
or red bands.
15.5.5 Oil Pressure
Figure 242. Oil Pressure Display
