Section 16. Autoflight Eclipse 5OO Systems Manual
Copyright © — Eclipse Aviation Corporation
Version 2.0 April 2007 407
Center Switch Panel
Right
PFD
Left
ISS
Left
ACS
L KBD
Autopilot
Control Panel
Left
PFD
Optional
R KBD
MFD
Right
ISS
Engine
Start
Switches
ACS-PFD Communications Bus
Left Byteflight Bus
Right Byteflight Bus
ACS-PFD Communications Bus
Right
ACS
Stick
Force
Yaw Servo Pitch Servo Roll Servo
Right Byteflight Bus
Left Byteflight Bus
Inter Servo Communications
Center
Pedestal
Left
Sidestick
Right
Sidestick
Stick
Force
TOGA
A/T
Disconnect

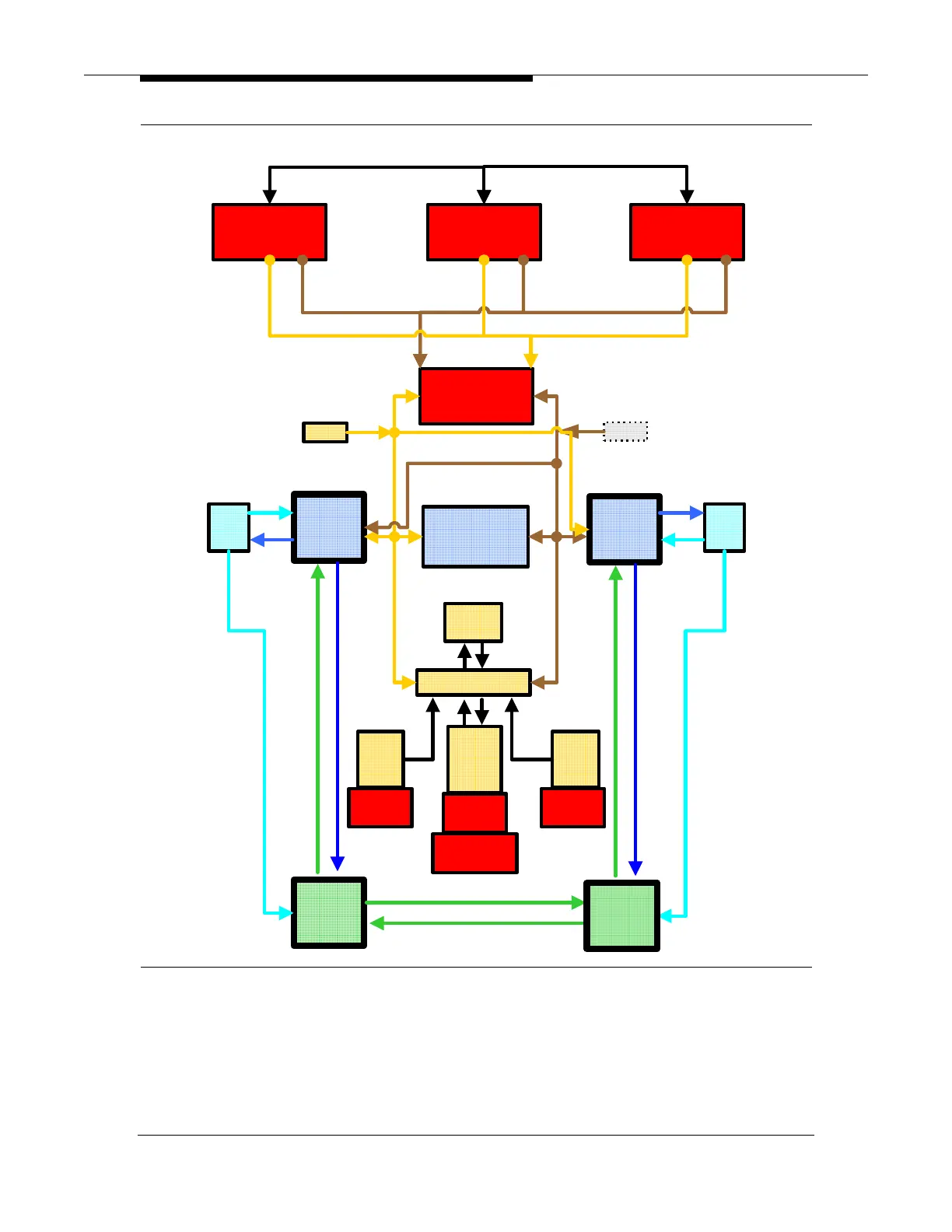

Figure 281. Autoflight-ACS Interface
