Refer to Figure 3. The home screen displays the Current fluid temperature (1) on the upper
display in red font and the Set Point temperature (2) on the lower display in green font in the
selected temperature scale (°F or °C). The numbers in red font (3) located below the Set Point
temperature serve for informational purposes only and have no programmed function. See
Section 7.3.
1
2
3
10
4
5
6
7
8
9
11
12
13
14
15

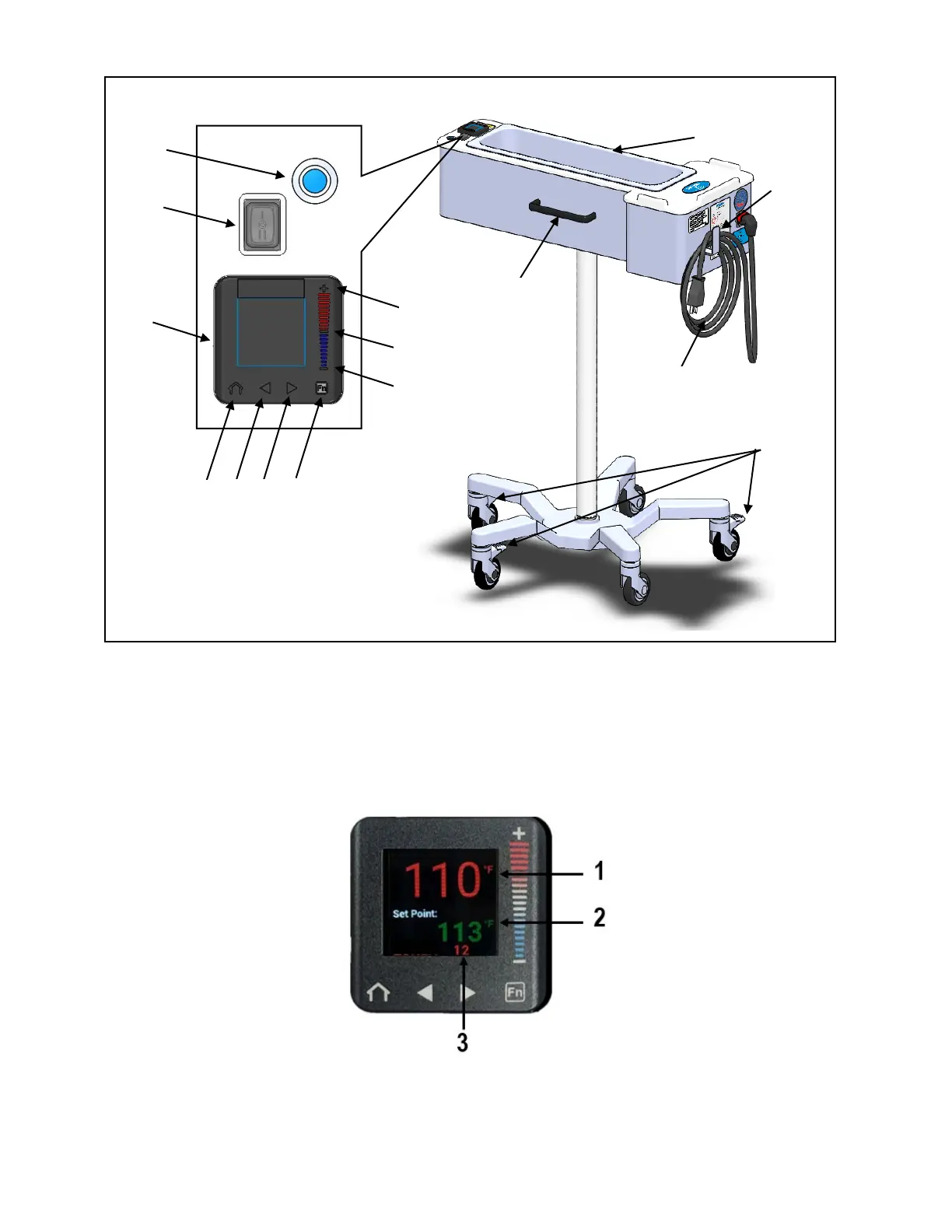

Figure 2: Controllers, Indicators, and Comonents
Figure 3: Controller Home Screen
