When not displayed, the drape is either not installed, installed
incorrectly, or expired.
The temperatures on the home screen, as shown in Figure 6, can be displayed in either
degrees Celsius or degrees Fahrenheit (Section 6. 5.1)..
7.3.2 Warnings
In the event that the Current fluid temperature exceeds the Set Point temperature
by 2°C (4°F) or greater, the display will show “Attention! Alarm 1: High” flashing on
the screen.
Alarm 1 will stop flashing when the Current fluid temperature returns within
the range of less than 2°C (4°F) above the Set Point temperature.
In the event that the basin temperature exceeds 60°C (140°F), the display will
show “Attention! Alarm 2: High” flashing on the screen.
The heater pad of the Fluid Basin will shut off to allow the system to cool.
The system will resume normal heating operation when the Fluid Basin
returns to normal operating temperature.

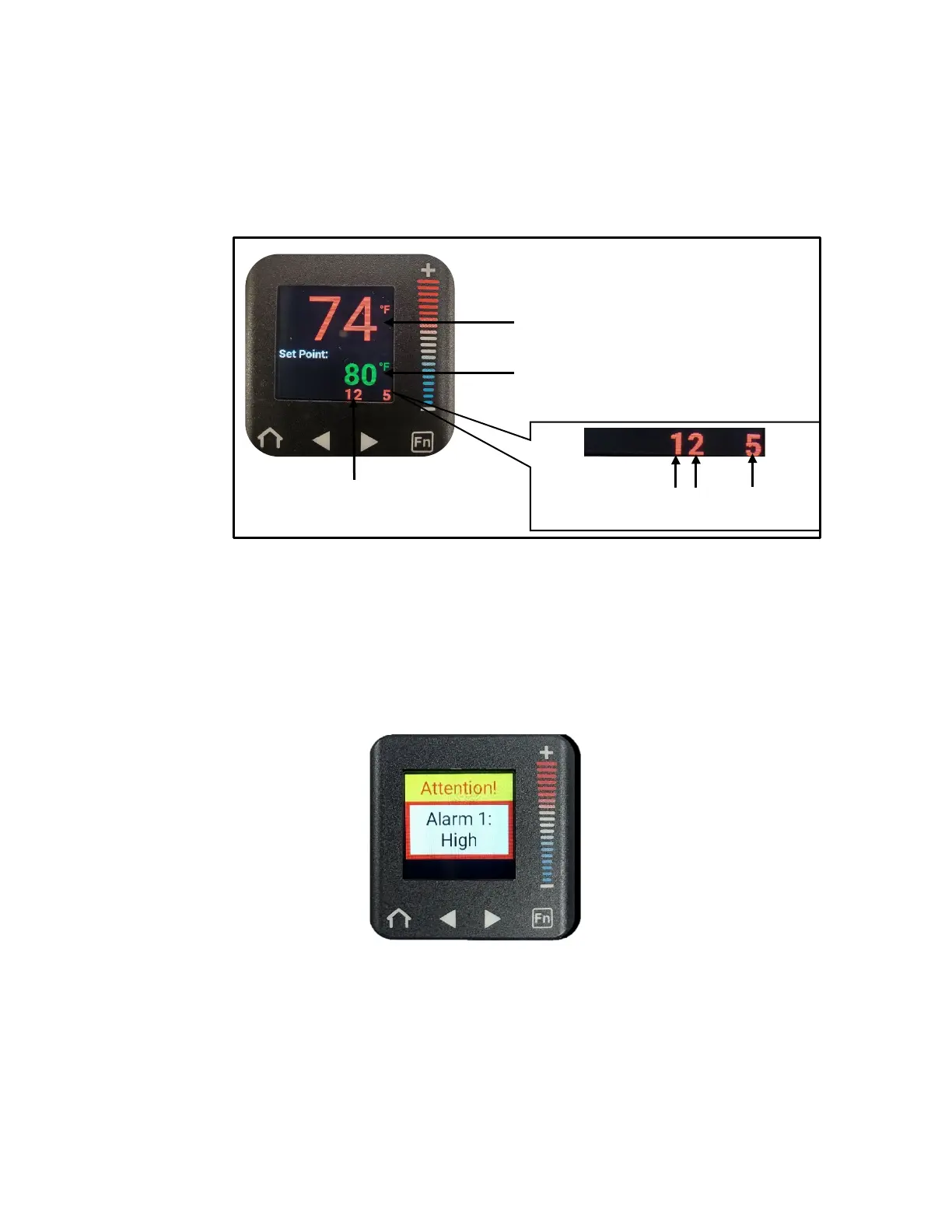

Figure 8: Controller Home Screen Display
