Page 22 of 51
EFW5L_IFU REV NEW
c. Pull back red lock button (5) and disengage female end from EFW5L.
6.5 Fuse Installation
Procedures described in this section should only be performed by qualified service
personnel.
Refer to Figure 6. Install the fuses as follows:
a. Locate the Fuses (1) in the Power Cord Kit box.
b. Confirm the Fuses are sized correctly for local power system:
a) 120VAC, T5.0AL, 250VAC (5x20mm)
b) 230VAC, T3.15AL, 250VAC (5x20mm)
c. Using flat-tip screwdriver, unscrew and pull out two Fuse Holders (2).
d. Insert Fuses into Fuse Holders.

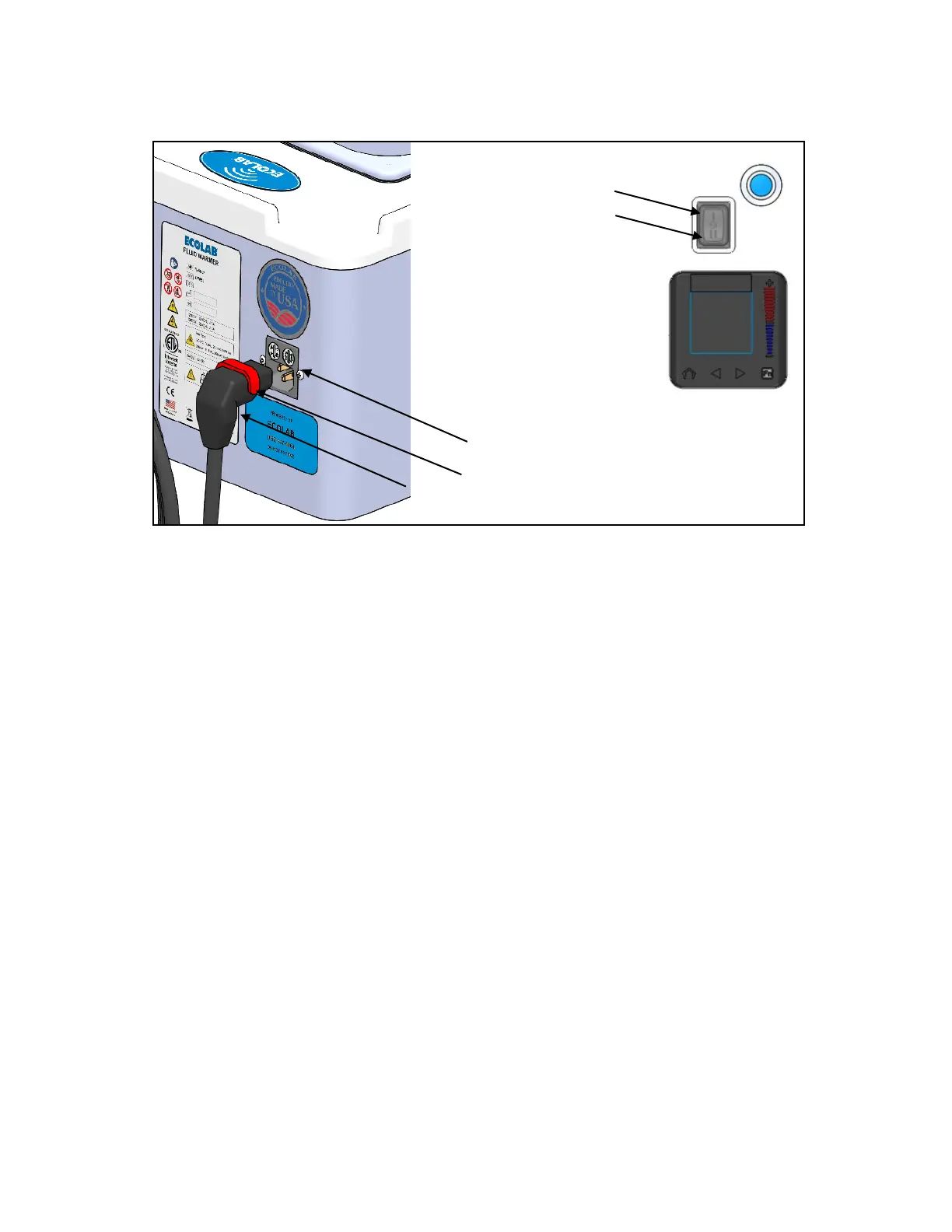

Figure 5: Connecting and Disconnecting the Power Cord
