Anemometer
Ideally mounted at least 32 feet, or 10 meters above ground level.
Try to make the anemometer the highest object around. 7 feet, or 2.75
meters) or more above the surrounding obstructions is best.
Rain Gauge
Ideally mounted at a height of 4 to 6 feet, or 1.5 to 2 meters above the
ground.
Ideally located at a horizontal distance of 4 times the height, above the
rain gauge, of the nearest obstruction.
Ensure the rain gauge is mounted level to the ground, away from any
horizontal surface that can introduce rain-splashing or surrounding snow
buildup.
4.2 Ultrasonic Anemometer package assembly

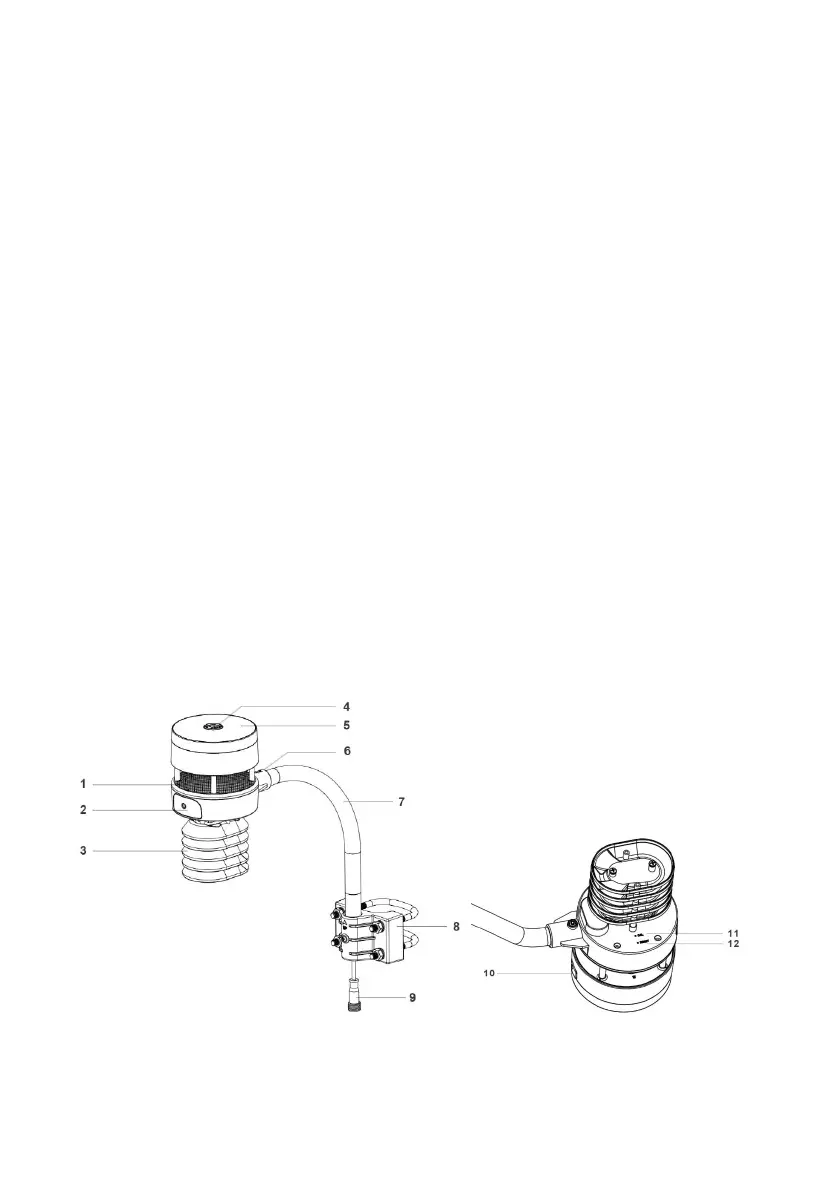

See Figure 6 to locate and understand all the parts of the ultrasonic
anemometer package with UV & light, thermo-hygrometer sensors, once
fully assembled.
Figure 6: Sensor package assembly components
