4.3 Rain Gauge Sensor Set Up and Installation

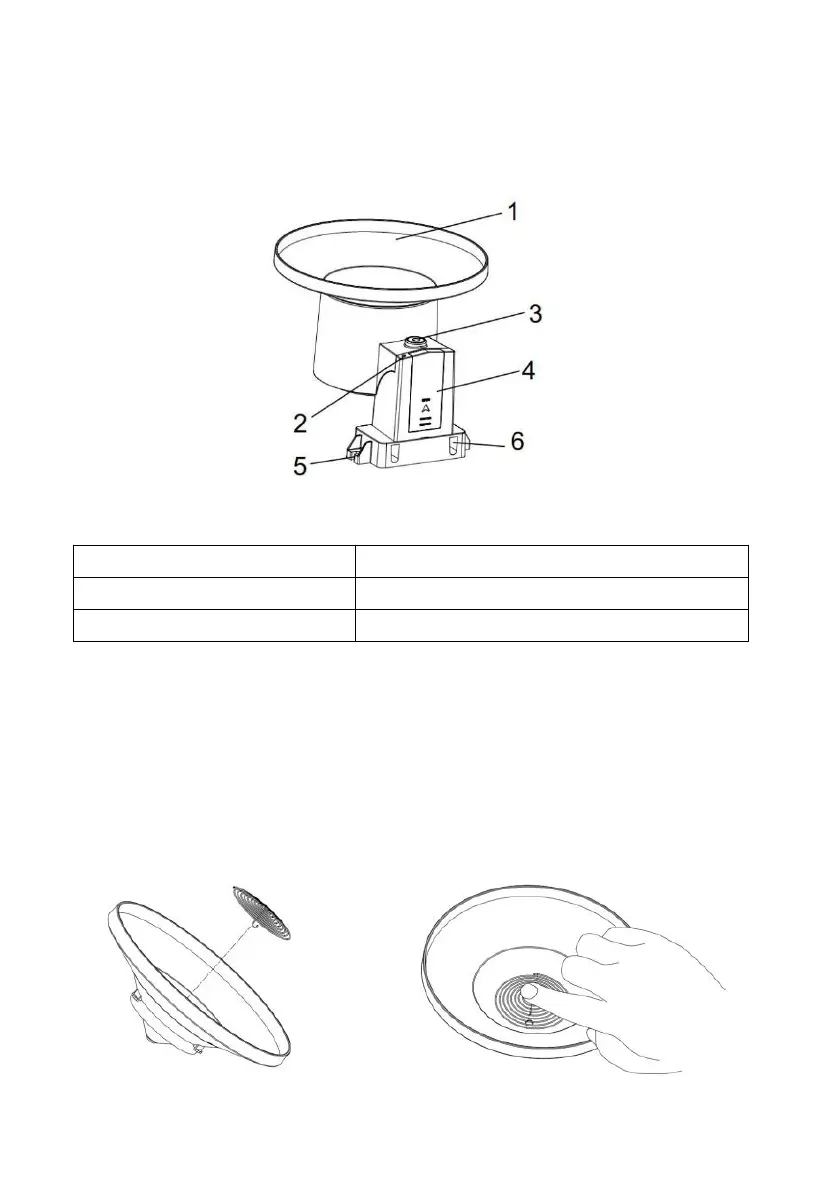

See Figure 13 to locate and understand all the parts of the rain gauge sensor
once fully assembled.
Figure 13: Sensor assembly components
4 Battery compartment door
5 Surface installation screw hole
6 U-bolt installation hole
Table 3: Sensor assembly detailed items
4.3.1 Install rain gauge filter
There’s a stainless steel filter included in the package. It’s aimed to stop
leaves or bird's dropping to avoid the obstruction of the cone hole. The
installation is simple: press the filter until the hook is inside the outlet hole
and self -locked. The spring tension will keep the filter sit tight on the funnel.
Take out the filter hook from the edge to uninstall.
