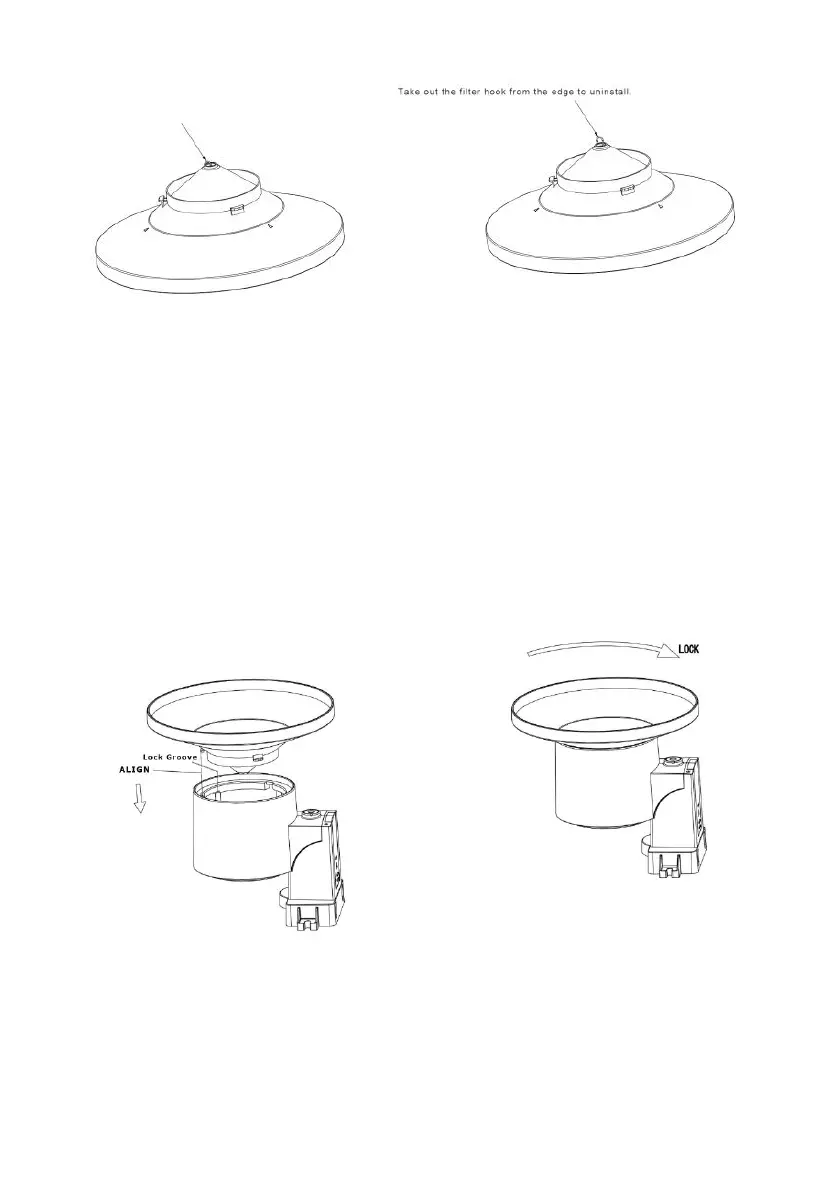

Figure 14: Rain gauge filter in/un-installation diagram
4.3.2 Install rain collector top
Align the rain collector top with the rain bucket, pay attention to the lock
groove position as shown on the left side in Figure 15. Next, lock the top
clockwise to the lock groove position, as shown on the right side of the
figure, until it comes to a stop and the top cannot be removed from the
bucket. Failure to do this may cause the collector top to blow away in strong
winds!
Figure 15: Rain collector top installation diagram
Hook the filter hook on the edge to install.
