adjustments easier and avoids any distance or interference related issues
from the setup.
After setup is complete and everything is working, return here for outdoor
mounting. If issues show up after outdoor mounting they are almost
certainly related to distance, obstacles etc.
4.3.4.2 Mounting with U-bolts
The mounting assembly includes two U-Bolts and a bracket that tightens
around a 1-2" diameter pole(not included) using the four U-Bolt and nuts.
Note: Use the bubble level on the side of the rain gauge as a guide to
verify that the sensor is leveled (for proper measurements).

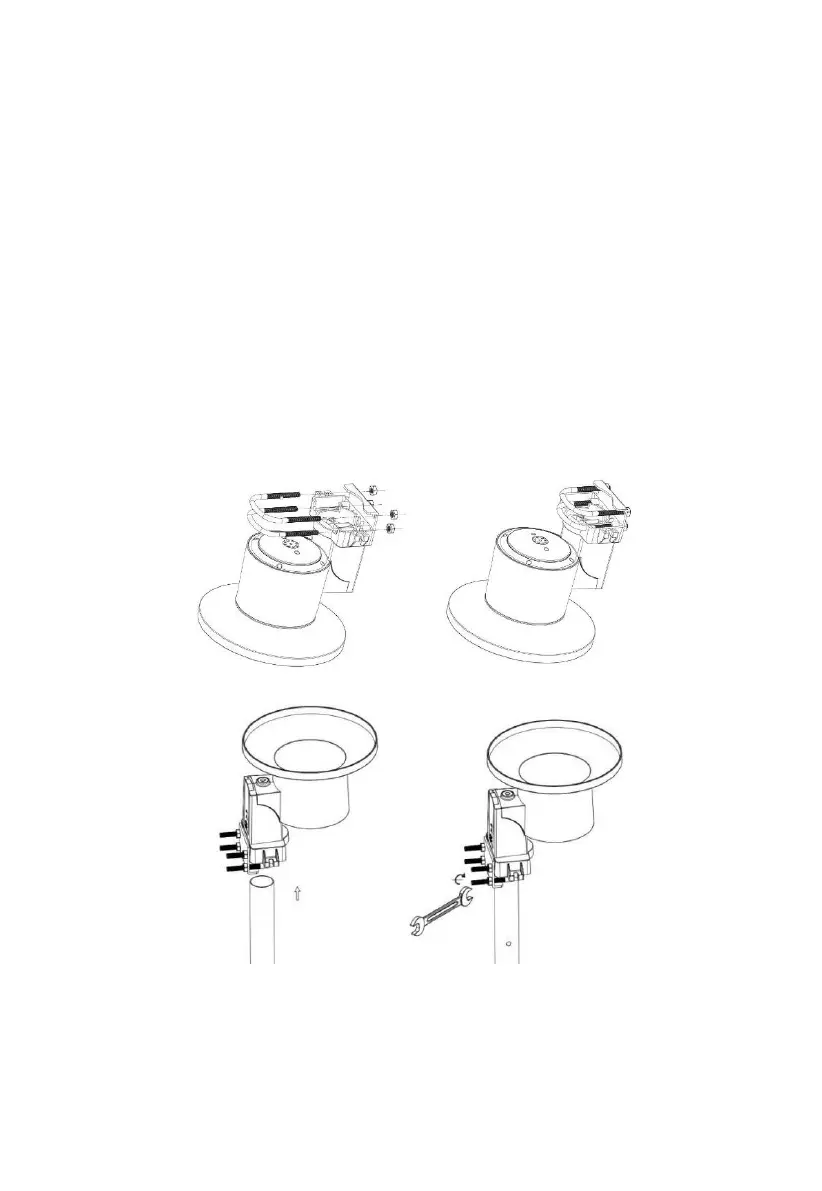

Figure 16: Rain gauge installation with U-bolts
