ECRM Mako 4 CTP - Page 43

AG45134 Rev. 3 3 - 9
Step 2. Raise the pinch roller bar
to open the pinch rollers.

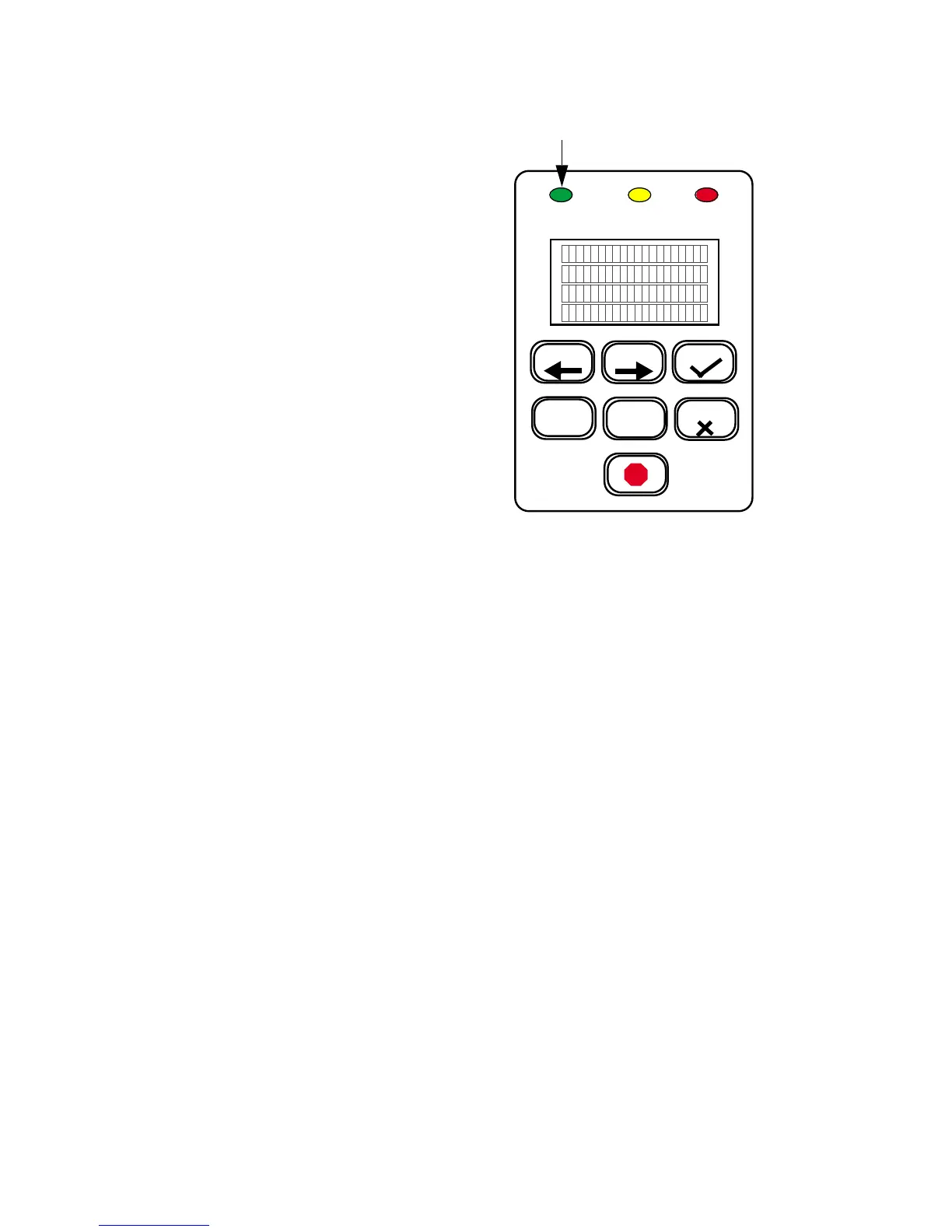

Be sure the pinch roller
is fully raised. If it is not,
the green Expose LED
will not light.
Step 3. Verify the requested pin
bar is loaded. If it is not,
change the pin bar.
Step 4. Place the requested plate
on the input tray.
PREV NEXT
MENU
SELECT
OK
CANCEL
EXPOSE
ERROR
ATTENTION
GREEN LED
