AG45134 Rev. 3 3 - 11
If the LED goes out, you have lost pin contact. Move the plate
out and to the right slightly, and then back in and to the left until
the green LED stays on. Be careful to not apply so much pres-
sure to the plate that the registration pins dent the plate. Use
one finger/thumb to apply minimal pressure to the center of the
plate.
Note: If the green LED is not
staying illuminated,
the pin bar may not be
fully seated. Remove
and reinstall the pin
bar, following the
instructions above.
Step 8. Holding the plate in
position, lower the
pinch roller bar . The
green light will
remain on if pin con-
tact has been main-
tained and the
recorder will prompt
for the OK button to
be pressed to start
imaging.
Note: If the green LED does not stay illuminated, open the pinch
roller bar and go back to Step 5.
Step 9. Press the OK button. Imaging will begin.
CAUTION - Never raise the pinch roller bar while a plate is
being exposed. Doing so will cause the plate to jam inside
the platesetter. For details, refer to “Clearing Misfeeds” in
the troubleshooting chapter.
Step 10. After the plate is imaged, it will be automatically transported
from the Mako to the on-line processor via the media transport.
PREV NEXT
MENU
SELECT
OK
CANCEL

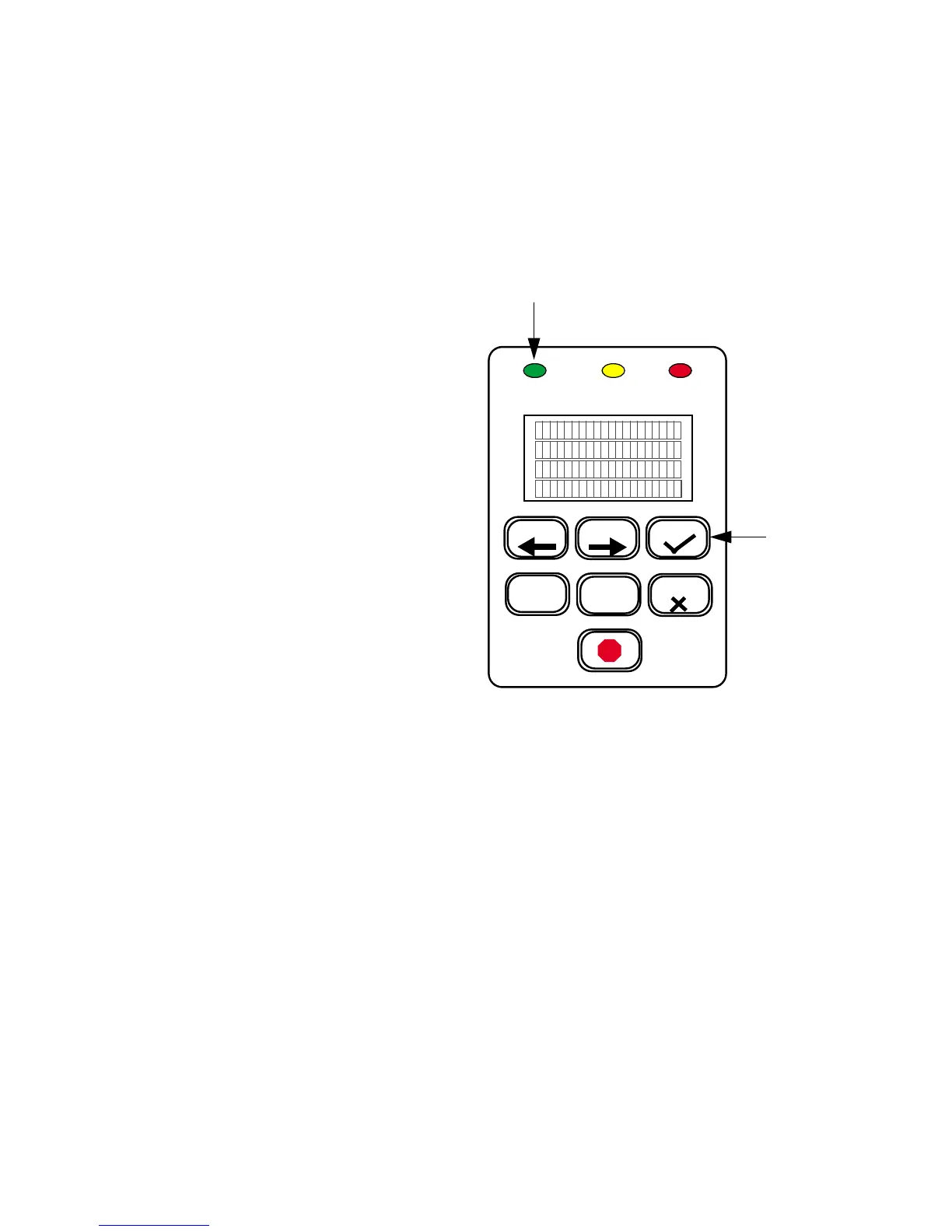

EXPOSE
