118
4
Supported Software
4.2.7 Microsoft DirectX 9
T
o install,
please follo
w the steps below
.
1
.
On the left side of the autor
un screen,
click the
“T
OOLS”
icon.
2
.
Click
“Microsoft DirectX 9”
on the main menu
.

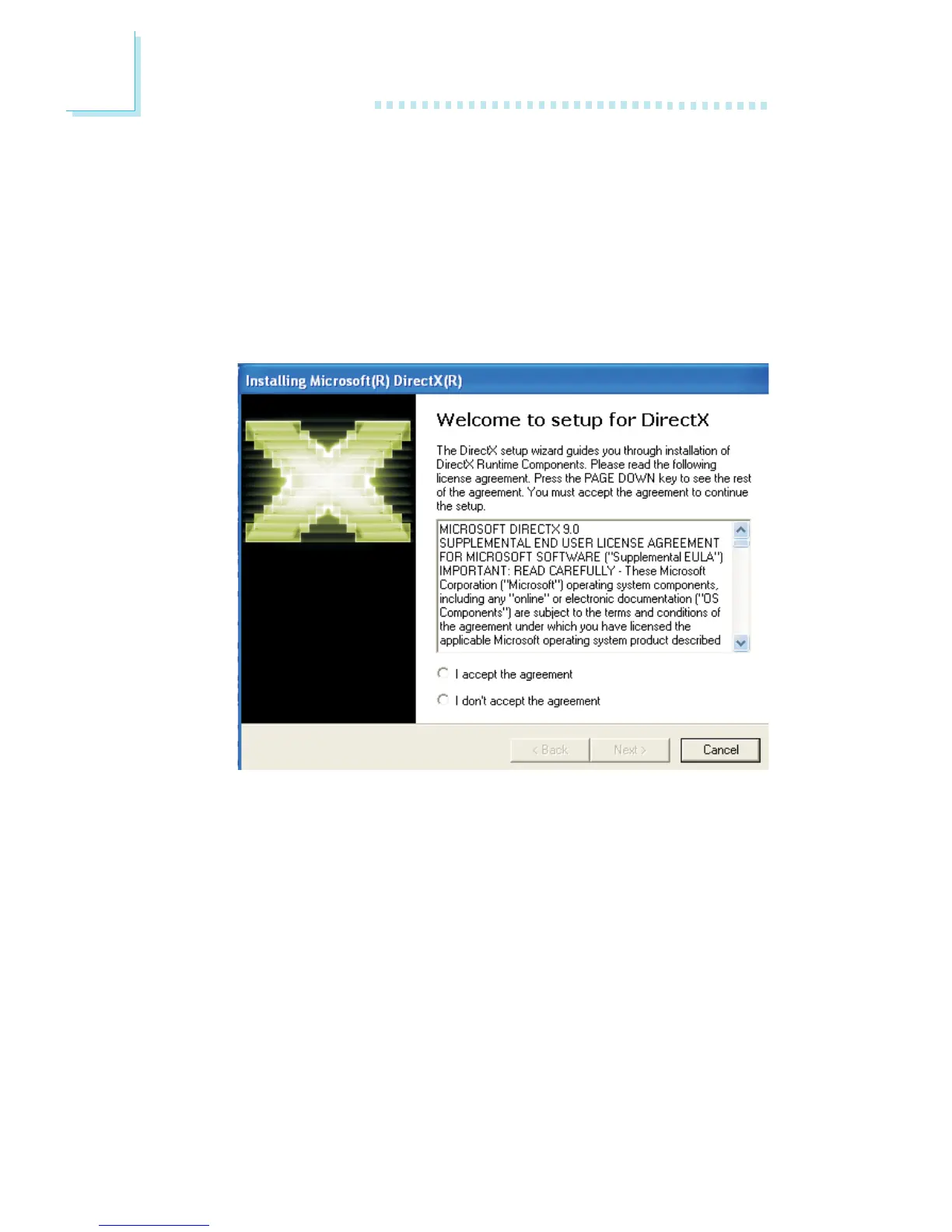

The following
screen will appear
.
3
.
Click
“I accept the agreement”
then click
“Next”.
4
.
Follow the prompts on the screen to complete installation.
5
.
Reboot the system for the driver to take effect.
117
