Edwards RV3 Instruction Manual

3.2.6 Dimensions

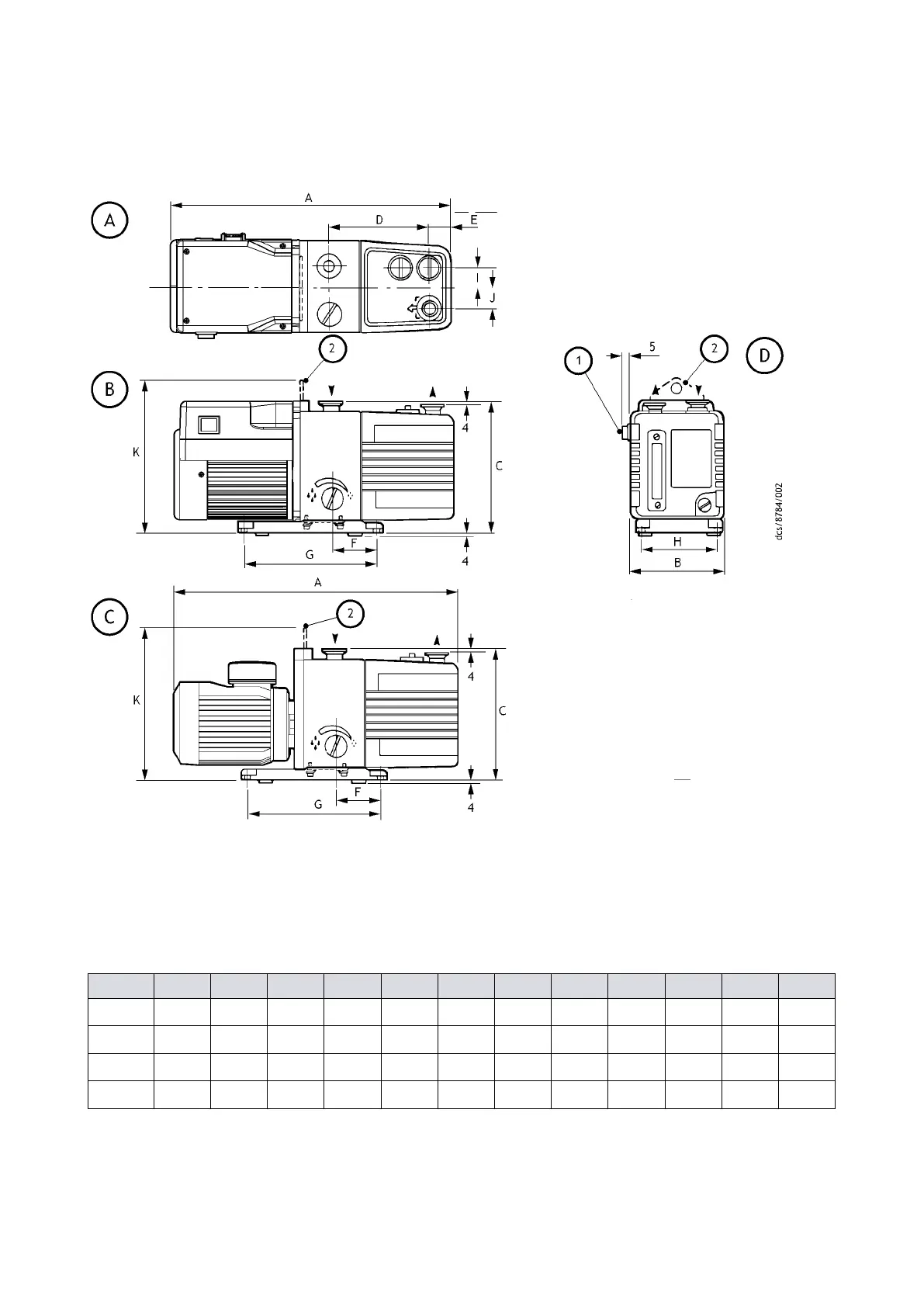

Figure 3 Dimensions (mm)
A. Top view of single-phase pump B. Side view of single-phase pump
C. Side view of three-phase pump D. Front view of single-phase pump
A. Top view of single-phase pump B. Side view of single-phase pump
C. Side view of three-phase pump D. Front view of single-phase pump
1. On-o switch (single-phase pumps only) 2. Liing bracket (RV8 and RV12 pumps
only. A liing handle is ed to RV3 and
RV5 pumps.)
1. On-o switch (single-phase pumps only) 2. Liing bracket (RV8 and RV12 pumps
only. A liing handle is ed to RV3 and
RV5 pumps.)
Pump A* A† B C D E F G H I J K
RV3 430 429 158 225 127 29 78 230 120 37 32 -
RV5 430 429 158 225 127 29 78 230 120 37 32 -
RV8 470 469 158 225 161 35 78 230 120 37 32 261
RV12 490 489 158 225 181 35 78 230 120 37 32 261
* Single-phase pumps
† Three-phase pumps
03/2021 - ©Edwards Limited
Page 21A65201880_AA
