Edwards STP-451C - Figure 13.2 External Appearance of the STP Pump [Chemical Specific Type C]

STP-301/451 Series Instruction Manual
13-3
Dimensions List (STP pump and flanges)
Model STP-301C Series STP-451C Series
Flange ICF
*2
152 VG
*1
100 ISO100 ICF
*2
203 VG
*1
150 ISO160
A 230 230 230 200 200 200
B 152 185 130 203 235 180
C 171 171 171 141 141 141
D 21 12 12 22 12 12

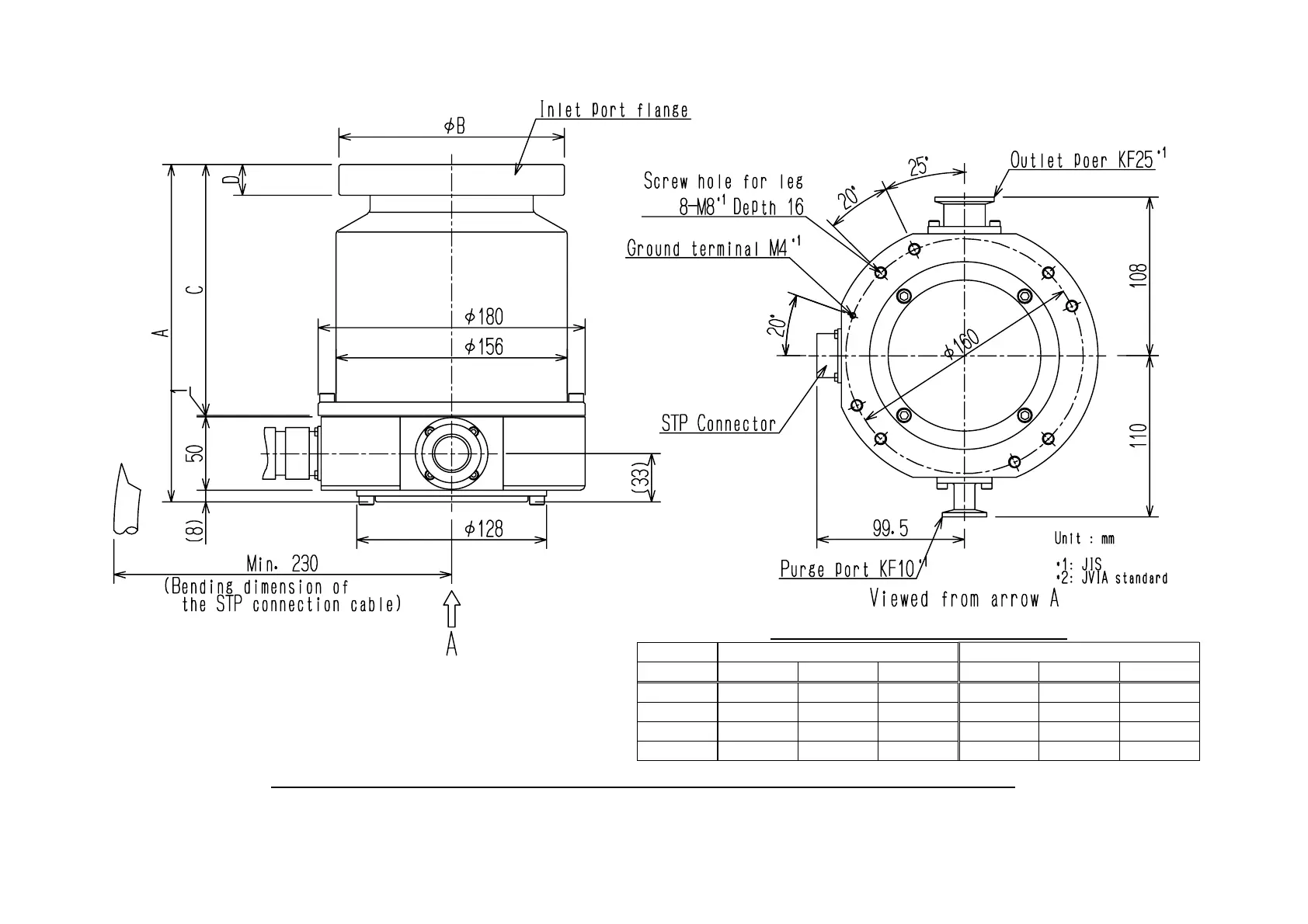

Figure 13.2 External Appearance of the STP Pump [Chemical Specific Type C] (Example: STP-301C)
