Edwards STP-451C - Figure 13.3 Label Affixing Position for the STP Pump

118 pages

To Next Page

To Previous Page

STP-301/451 Series Instruction Manual

13-4

turbomolecular pump

SERIAL NO:

MANUFACTURING DATE :

WEIGHT:

RATED SPEED :

rpm

MANUFACTURED BY:Edwards Japan Limited.

1078-1,Yoshihashi,Yachiyo-shi,Chiba,Japan

STP-

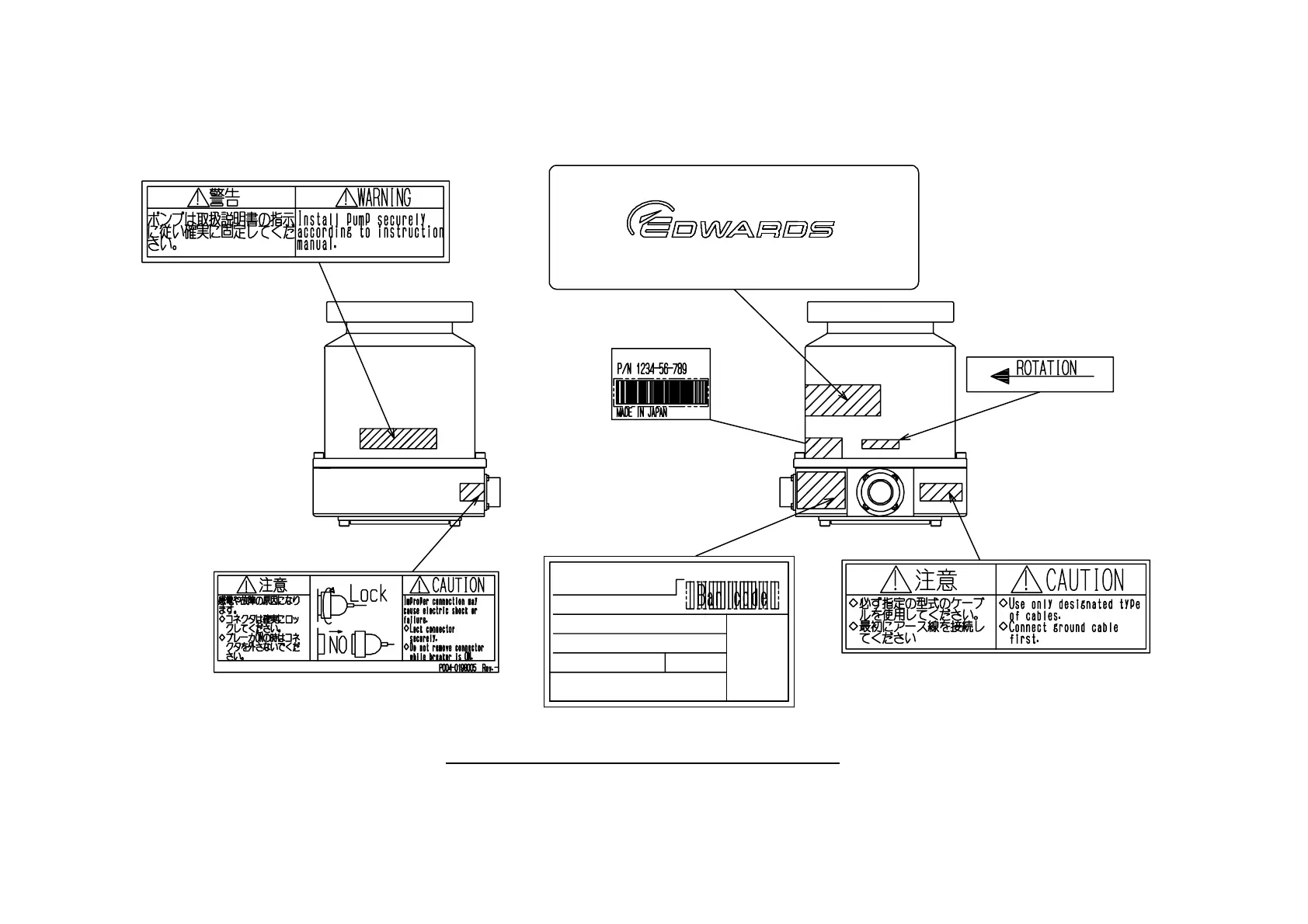

Figure 13.3 Label Affixing Position for the STP Pump
