Edwards STP-451C - Figure 8.4 CON4 Remote Output Signal Connector

STP-301/451 Series Instruction Manual
8-10
Operation
(5)
(17)
Remote selection state
signal output pins
(6)
(18)
Rotational state
signal output pins
(7)
(19)
EMERGENCY OPERATION state
signal output pins
(8)
(20)
FAILURE state
signal output pins
CR10
(9)
(21)
OVER TEMPERATURE state
signal output pins
CR9
(11)
(23)
ACCELERATION state
signal output pins
CR8
(24)
NORMAL OPERATION state
signal output pins
CR7
(10)
(22)
Not used
(12)
Frame ground
FG
STP Control Unit
CR4
CR5
CR6

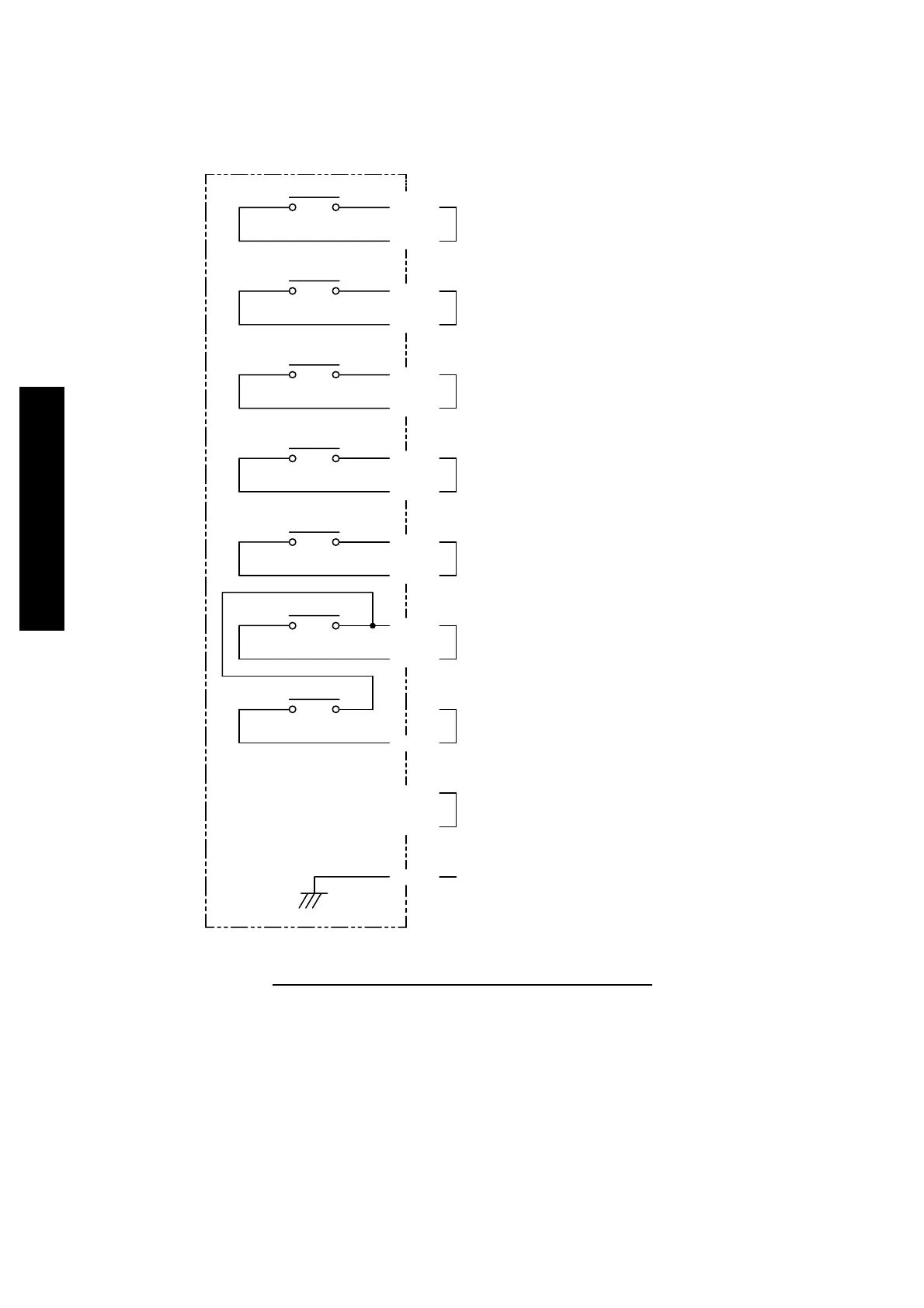

Figure 8.4 CON4 Remote Output Signal Connector
