Servicing the Fiery Central integrated server with furniture
6 Use the handle on the stability bracket to lift the rear of the FC integrated server. Slide the FC integrated server all
the way forward into the stand. Lock the FC integrated server into place with the two thumbscrews that you
removed earlier.
7 Connect the two monitor cables (power and video):
• Power to the back of the monitor and to the wall outlet
• Video to the back of the monitor and to the back of the FC integrated server

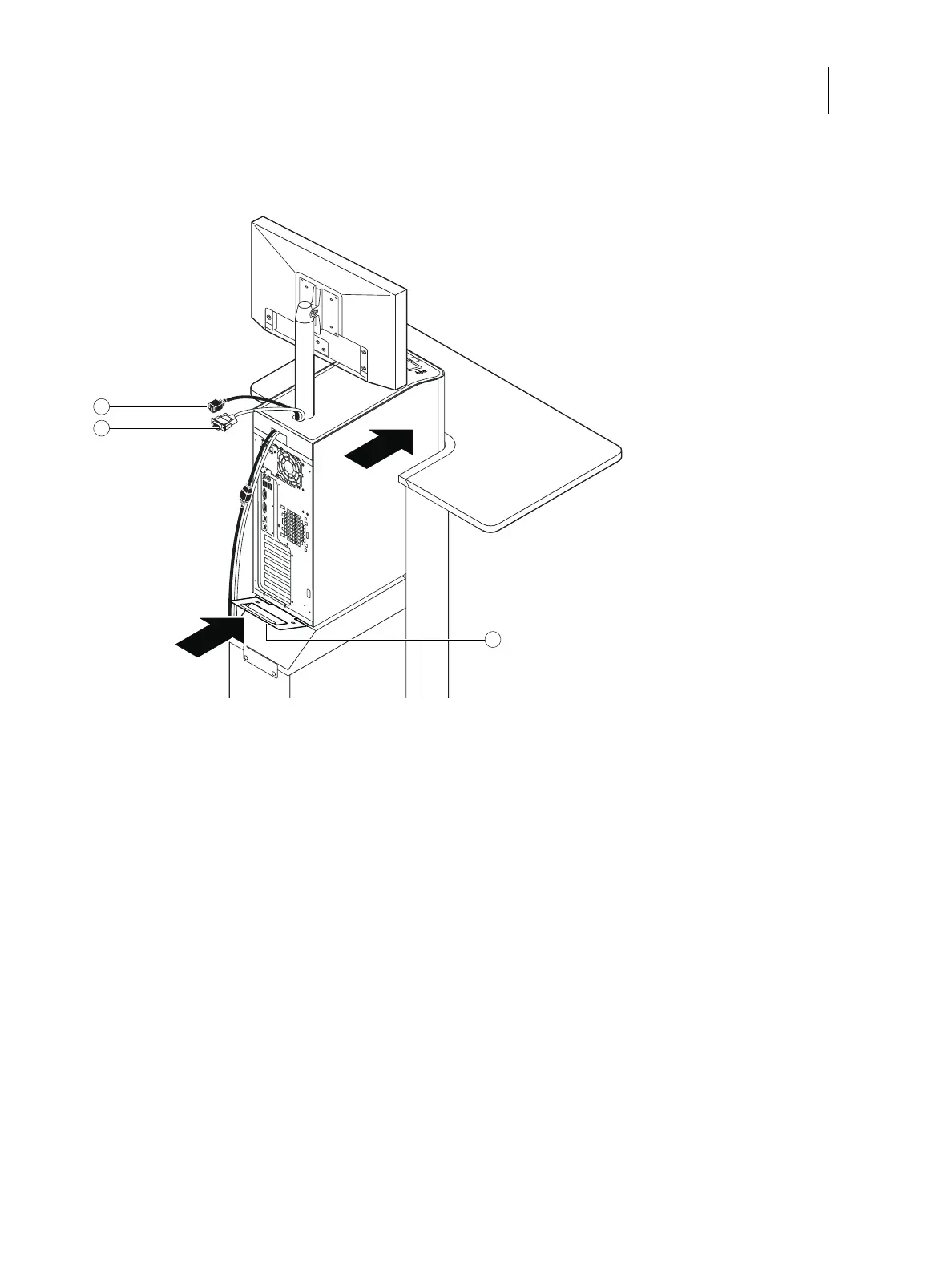

1Power cable
2Video cable
3 Stability bracket (lock into place with two thumbscrews)
