EG4 6500 - Page 26

Line 1
Line 3
N
L1
L2
L3
N
L1
L2
L3
Line 2
Communication Connection
2
1
3
4
5
6
Line 1
Line 3
Line 2

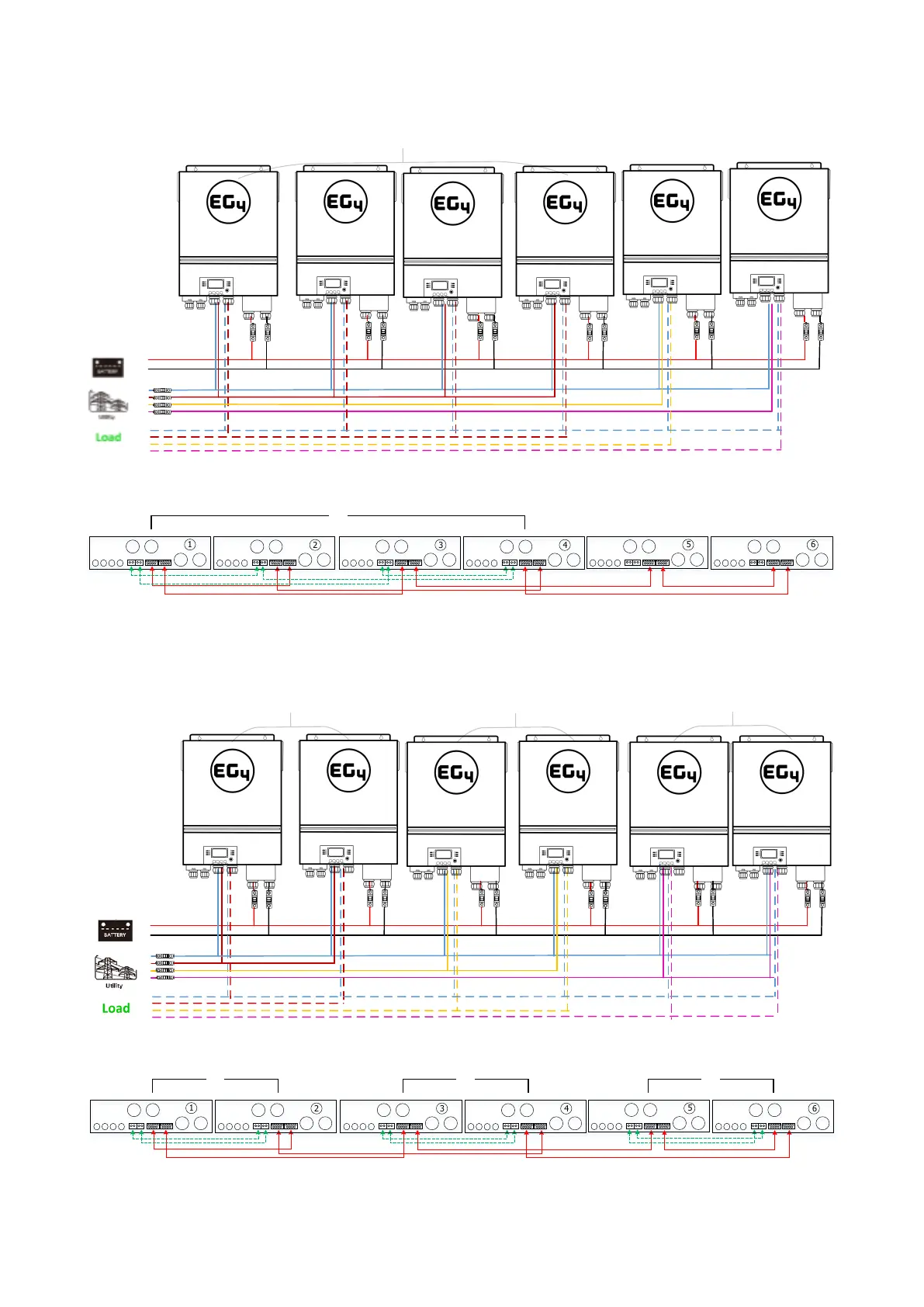

Parallel Connections for 3-phase Continued:
Line 1
N
L1
L2
L3
N
L1
L2
L3
Line 2
Line 3
Communication Connection
2
1
3
4
5
6
Line 1 Line 2
Line 3
EG4 Electronics
www.eg4electronics.com
Line 1
Line 1
Line 1
Line 1
Line 2
Line 3
• Inverter 3 Port A → Inverter 4 Port A
• Inverter 3 Port B → Inverter 4 Port B
• Inverter 5 Port A → Inverter 6 Port A
• Inverter 5 Port B → Inverter 6 Port B
• Inverter 1 Port A → Inverter 2 Port A
• Inverter 1 Port B → Inverter 2 Port B
• Inverter 1 Port A → Inverter 2 Port A
• Inverter 1 Port B → Inverter 3 Port B
• Inverter 2 Port B → Inverter 4 Port B
• Inverter 3 Port A → Inverter 4 Port A
