EG4 6500 - SPECIFICATIONS; Line Mode Specifications

SPECIFICATIONS

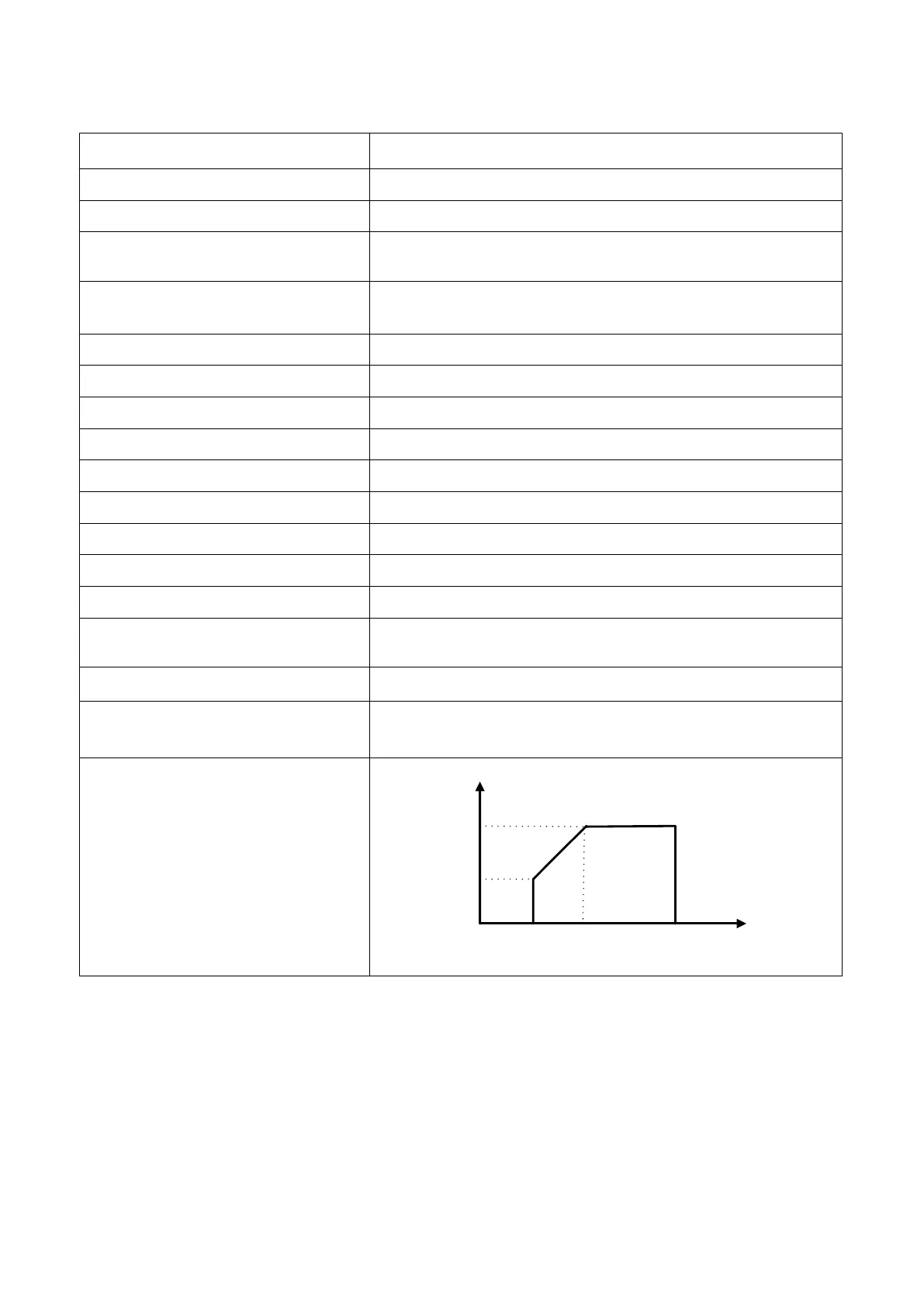

Table 1 Line Mode Specifications
MODEL
6.5KW
Input Voltage Waveform
Sinusoidal (utility or generator)
Nominal Input Voltage
120Vac
Low Loss Voltage
90Vac±7V (UPS)
80Vac±7V (Appliances)
Low Loss Return Voltage
100Vac±7V (UPS);
90Vac±7V (Appliances)
High Loss Voltage
140Vac±7V
High Loss Return Voltage
135Vac±7V
Max AC Input Voltage
150Vac
Max AC Input Current
60A
Nominal Input Frequency
50Hz / 60Hz (Auto detection)
Low Loss Frequency
40±1Hz
Low Loss Return Frequency
42±1Hz
High Loss Frequency
65±1Hz
High Loss Return Frequency
63±1Hz
Output Short Circuit Protection
Line mode: Circuit Breaker (70A)
Battery mode: Electronic Circuits
Efficiency (Line Mode)
>95% ( Rated R load, battery full charged )
Transfer Time
10ms typical (UPS);
20ms typical (Appliances)
Power Limitation
Input Voltage
Output Power
Rated Power
50%
Power
80V
110V 140V
