Display Screens
Display information can be cycled through by pressing the “UP” or “DOWN” buttons from the main
screen. The screen options are shown in the order in the table below.

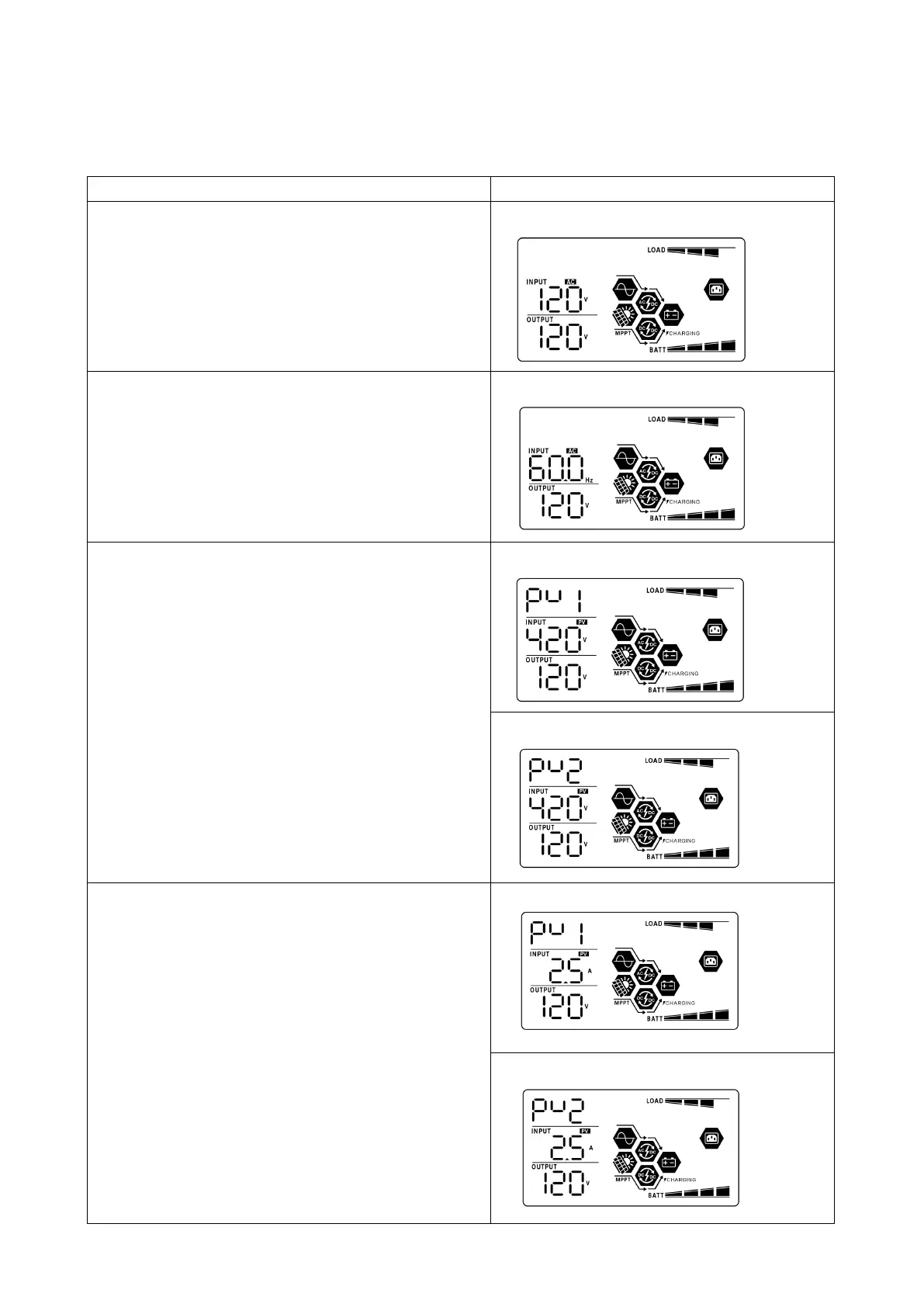

Selectable information
LCD display
Input voltage/Output voltage
(Default Display Screen)
Input voltage=120V, output voltage=120V
Input frequency
Input frequency=60Hz
PV voltage
PV1 voltage=420V
PV2 voltage=420V
PV current
PV1 current = 2.5A
PV2 current = 2.5A
