Compressor cabinet
1/N/E 230 V, 50 Hz
ELEKTRIC OBJECT OF 1st. CAT.

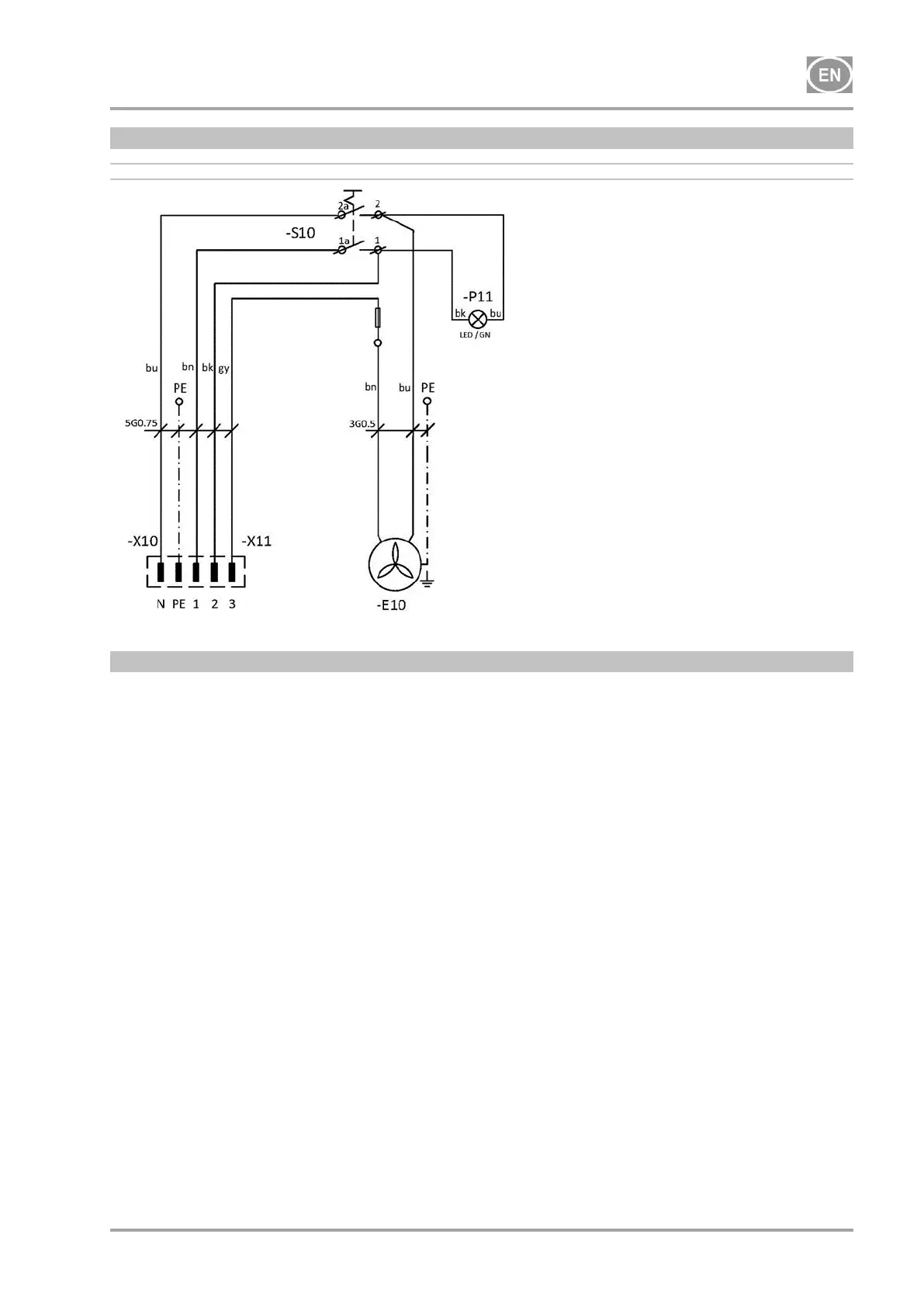

Description to electrical diagrams:
M1
Compressor motor
F1
Circuit breaker switch
E1
Compressor fan
S10
Switch
E7-E9
Dryer fan
P11
Indicator
E10
Cabinet fan
RSA 10
Controller
B2
Temperature switch
M11, M12
Solenoid valve - regeneration
X10,X11
Connector
M4
Relief solenoid valve
B1
Pressure switch
X2, X3
Socket
X1
Terminal box
A1_1
Dew point sensor connector
