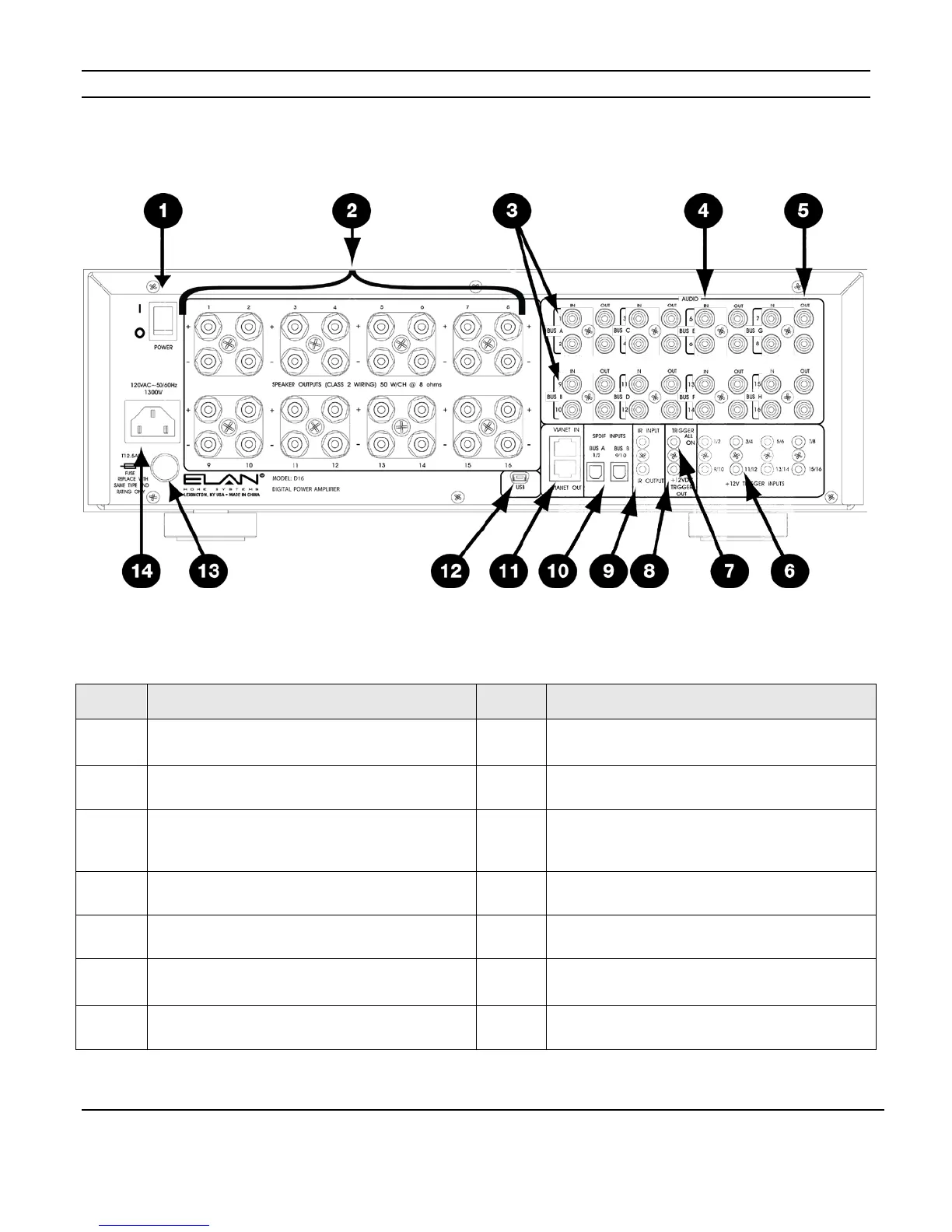

D16 Rear Panel Connections
Figure 1-2
Item Function Item Function
1
Power Switch
Unit master power switch
8
12V Trigger Out
12VDC output when any channel is on
2
Speaker Outputs
Channels 1-16, Five Way Binding Posts
9
IR Input & Output
Used to control the amplifier with IR signals
3
Bus Inputs, A-H
Used to connect multiple speaker outputs to the
same audio source
10
Digital Audio Bus Inputs
Connects S/P-DIF audio source to Bus A or Bus B using
TOSLINK connections
4
Line Level Audio Inputs
Channels 1-16
11
VIA!NET Input & Output
Used to connect the amplifier to the VIA! Network
5
Line Level Audio Outputs
Used for sharing audio sources between chassis
12
USB Mini B Port
For in-field firmware updates
6
12V Trigger Inputs
Used to turn on/off pairs of amplifier channels
13
Fuse Holder
Replace only with T12.5AL250V
7
Trigger All On
Used to turn on all amplifier channels at once
14
Power Cable Connector
IEC type C14
Note: All 3.5mm connectors are mono (two conductors)
