ELAN HOME SYSTEMS D16 INSTALLATION MANUAL
© ELAN Home Systems 2010 | All rights reserved.
Page 37
BUS Outputs
BUS audio outputs enable connection of additional amplifiers to allow further system
expansion. Audio input 1 is buffered and routed out the audio output 1 connector, input 2
to output 2 and so forth. There are eight Bus Ins and Outs, labeled A for channels 1 / 2, B
for 3 / 4, C for 5 / 6, D for 7 / 8, E for 9 / 10, F for 11 / 12, G for 13 / 14, and H for 15 / 16.
Digital audio inputs do not “loop out” of the D16. If multiple amplifiers are to be used in
Bus mode you should use the analog Bus inputs.

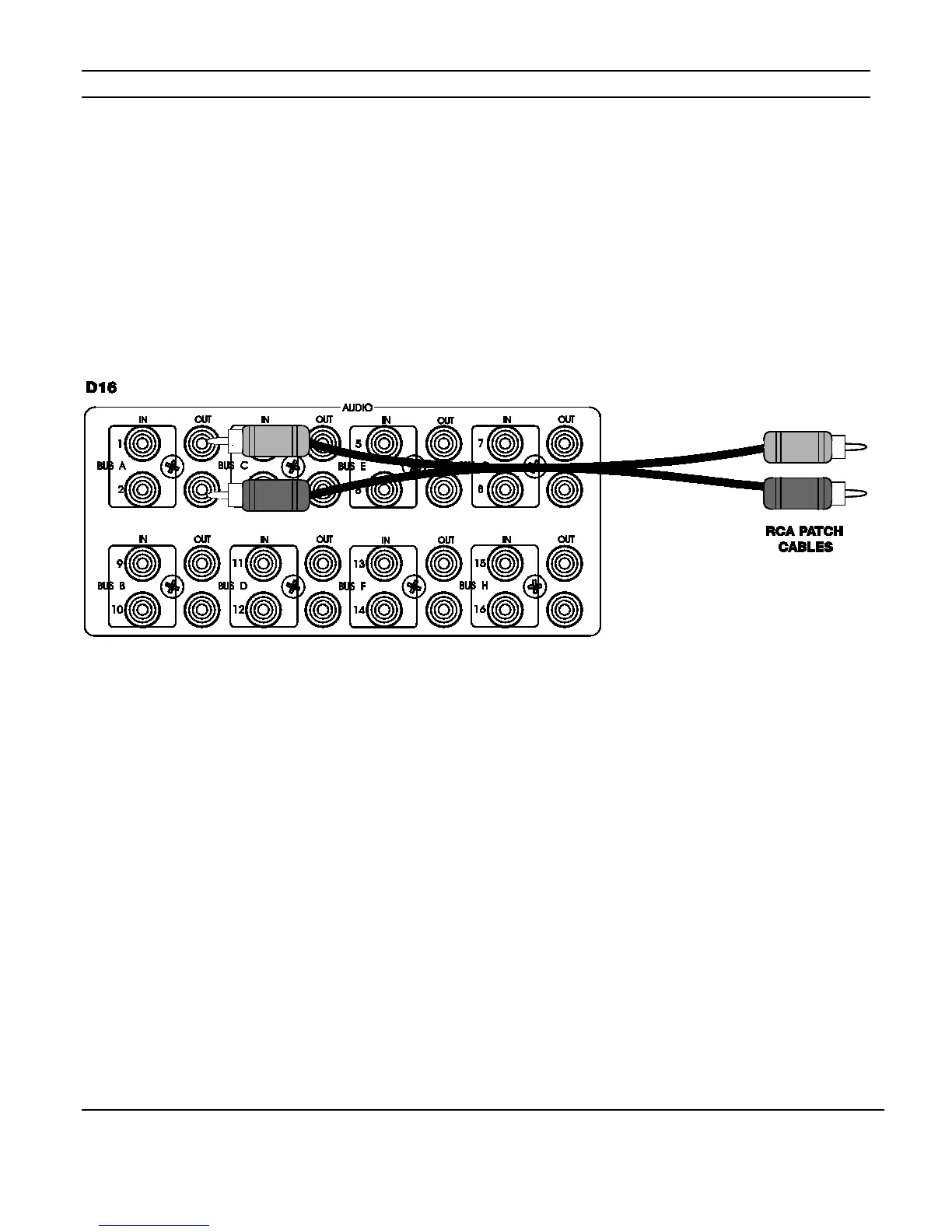

Figure 3-4 Analog Bus Outputs
