ALL ON Trigger Input
A 3.5mm mono interconnect cable is used for the ALL ON Trigger Input connection. This
Turn-On Trigger activates ALL channels.
When the trigger is active all channels turn on.
When the trigger is not active all channels turn off.
(See note on triggers on 41)

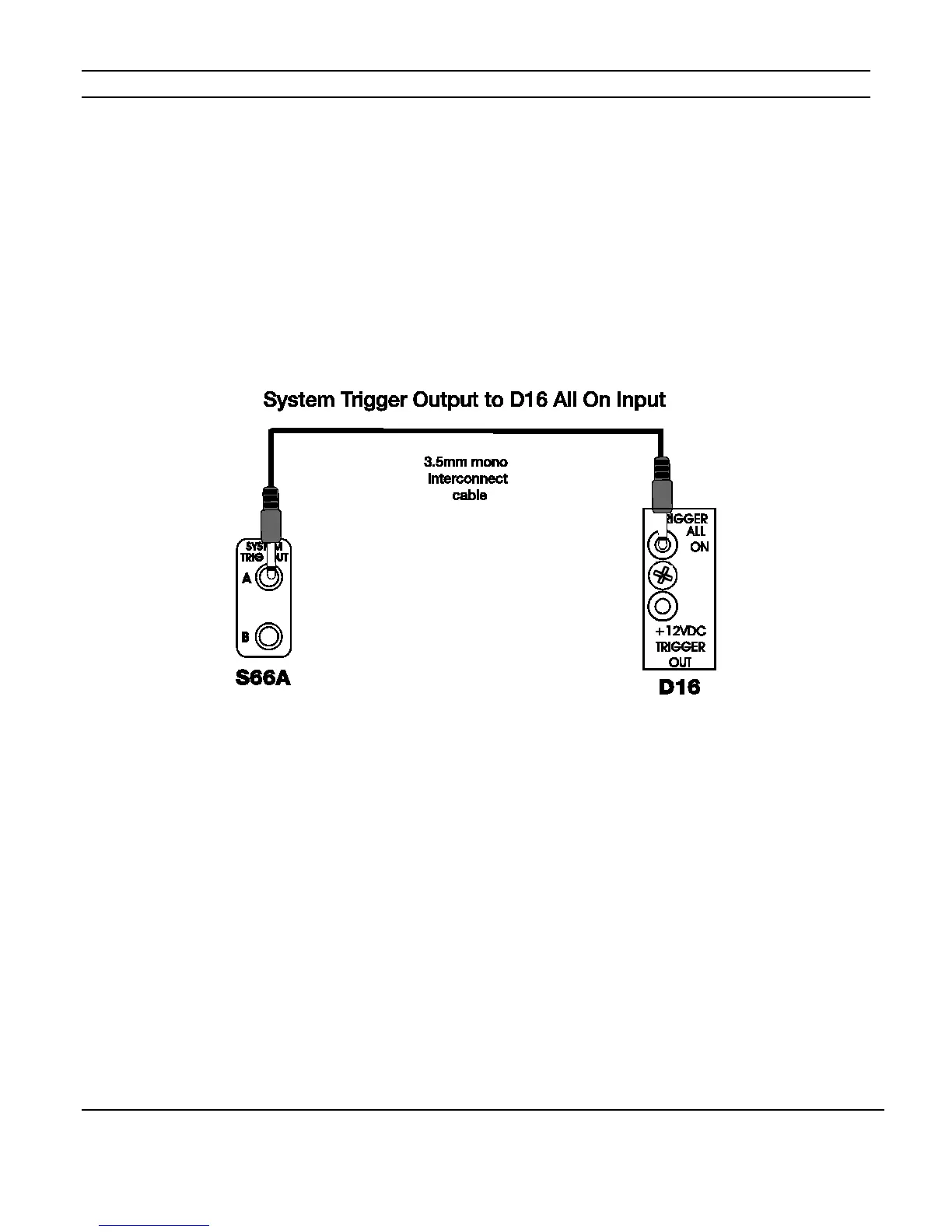

Figure 3-7 D16 All On Trigger Connections
