Single Stereo Input with Stereo and Mono Output
ELAN Special Application
Prerequisites: Factory Default the amp and set to ELAN or Normal Mode
Input Select Menu: Channel 3 with Input set to 1 + 2 Mono Bus A
See:
Restore Defaults on page 29, Operating Mode Menu on page 23
Input Select Menu on page 17
With the Input Select Menu set to the above settings, the D16 sums audio input 1 and 2
(Mono) and routes it to channel 3. This eliminates the need to use a “Y” cable.
Volume is adjusted by the ELAN A/V Controller or by the other Audio Device. Increasing or
decreasing the volume increases stereo channels 1 and 2 and mono channel 3.

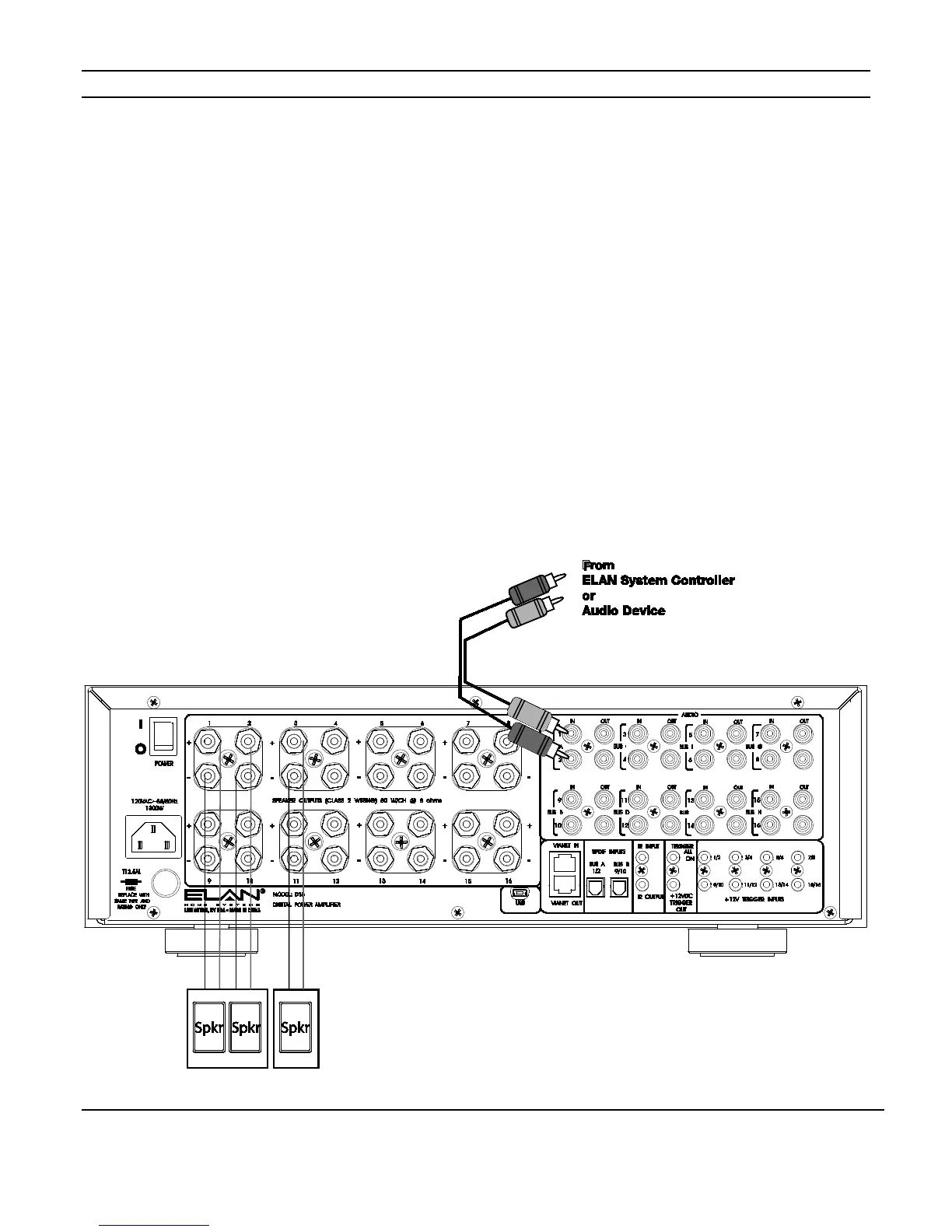

Figure 4-3 Stereo/Mono Using D16 Settings
