USB Connector
Used to update and configure the D16 firmware.
Note: A Standard USB-A to USB-Mini-B cable must be utilized for firmware updates and
is not included with the D16.
AC Power Connector
A removable IEC compatible AC Power cord is included for connecting the AC Power
Connector to 120VAC power.

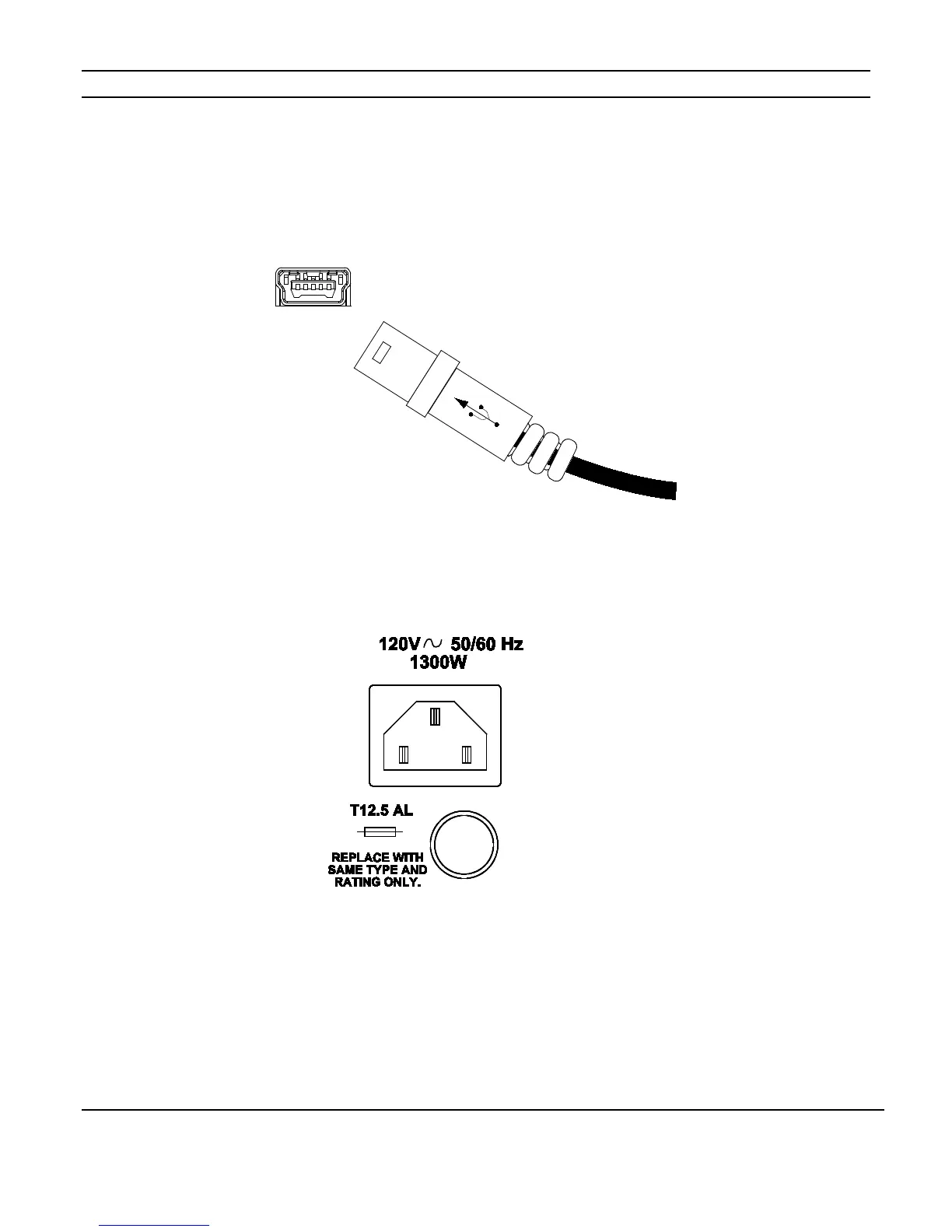

Figure 3-11
Mini-USB Port
Figure 3-12
AC Power Connection
