BUS Inputs
The D16 BUS Inputs A and B enable custom configuration of listening areas. Large or
irregular shaped rooms may be configured for both mono and stereo as coverage is
needed. Hallways, passageways, bathrooms and laundry rooms are the most popular areas
that can benefit from a mono BUS application. BUS Input application examples are shown
in the Applications section of this manual.
Channels 1 and 2 analog inputs are used for the Bus A input channels and channels 9 and
10 analog inputs are used for the Bus B inputs.
The D16 also features optical digital audio inputs for Bus A and Bus B.
(See Bus Input Menus on page 25.)

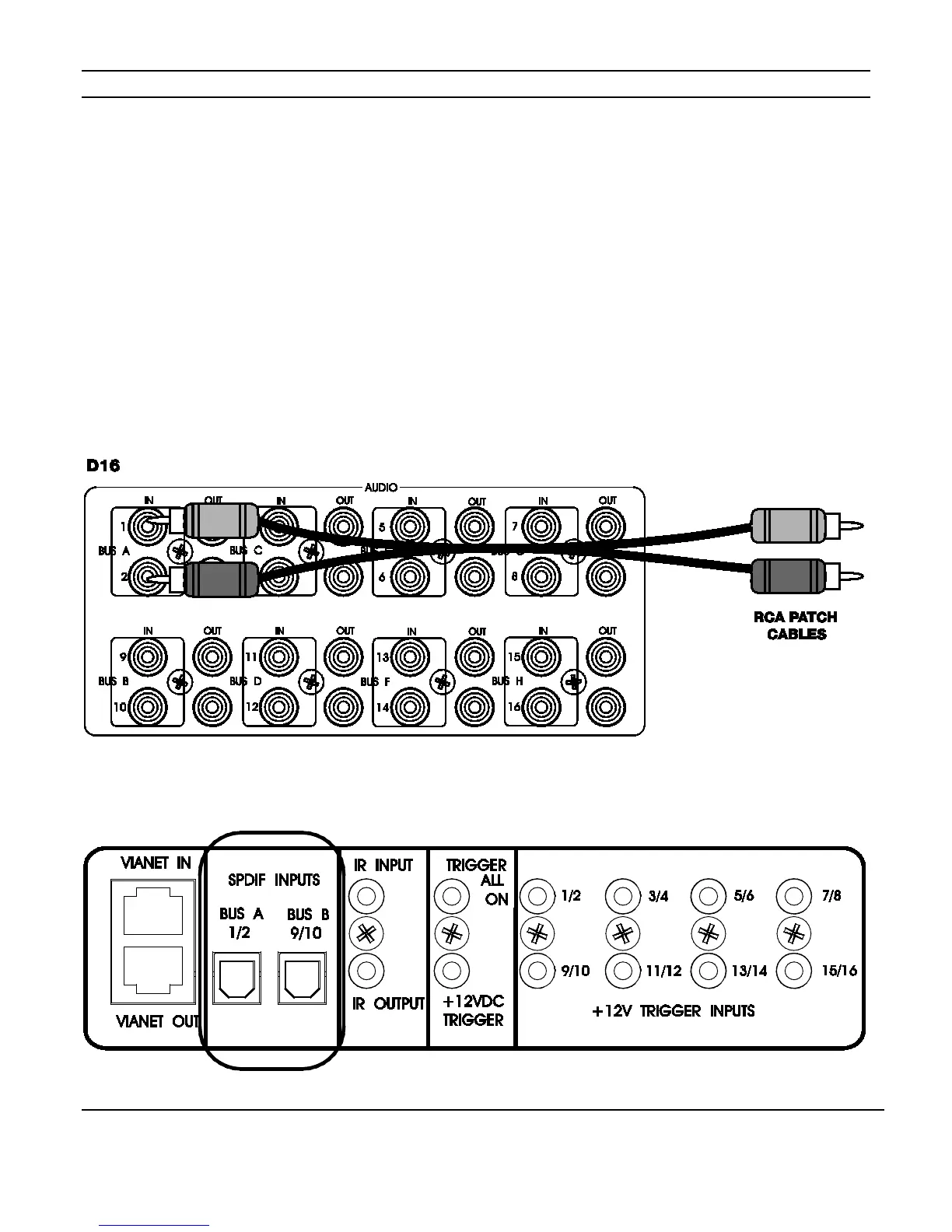

Figure 3-2 Analog Bus Inputs
Figure 3-3 Optical Digital Bus Inputs
