Electro-Craft BRU-200 - Power Supply Module Specifications (BRU-500 Only)

(
Specifications

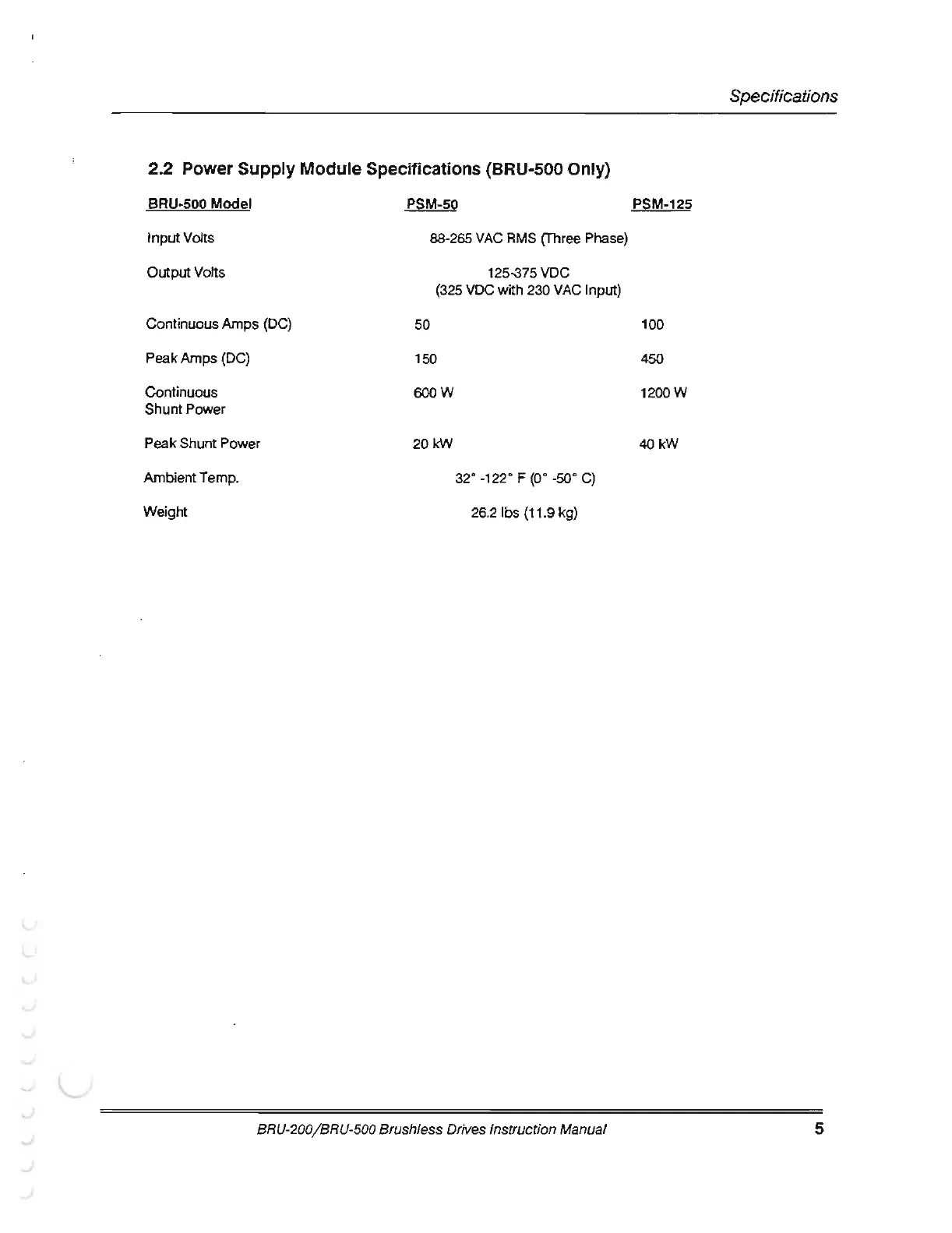

2.2 Power Supply Module Specifications {BRU-500 Only)
BRU-500 Model
PSM-50
PSM-125
Input Volts
88-265
VAC RMS (Three Phase)
Output Volts
125-375 VDC
(325 VDC
with 230 VAC Input )
Continuous
Amps (DC)
50
100
Peak Amps (DC)
150 450
Continuous
600W 1200W
Shunt Power
Peak Shunt Power
20kW 40kW
Ambient Temp. 32· -122· F (o • -so · C)
Weight
26.2
lbs (11 .9 kg )
BRU-200/ BRU-500 Brush/ess Dr ives Instruction Manual 5
