Electro-Craft BRU-200 - Figure 5-1 PSM Jumper Locations

(
r
(
Start-Up and Adjustments
0
4
DIAGNOSTIC
U1
INDICATOR
LIGHTS
POWER SUPPLY MODULE
PC BOARD
TB1
(COMPONENT SIDE)
w1 .
INTERFACE
CONNECTOR
JUMPER SETTING SELECTS:
SHORTING JUMPER ACROSS EXTERNAL ENABLE INPUT IS SELECTED.
TOP 2 PINS CPOSITION A) EXTERNAL CONNECTION REQUIRED TO
CONNECTOR TB1 SIGNALS ENABLE + AND
ENABLE -. SEE SECTION 4.4 FOR SIGNAL
SPECIFICATION AND DETAILS OF OPERATION
BEFORE USING POSITION A.
SHORTING JUMPER ACROSS
EXTERNAL ENABLE INPUT IS DE-ACTIVATED.
BOTTOM 2 PINS (POSITION B) POWER SUPPLY MODULE IS ENABLED WHENEVER
CST ANDARD SETTING) INPUT POWER IS APPLIED AND NO POWER
SUPPLY MODULE FAULT CONDITIONS ARE
DETECTED.

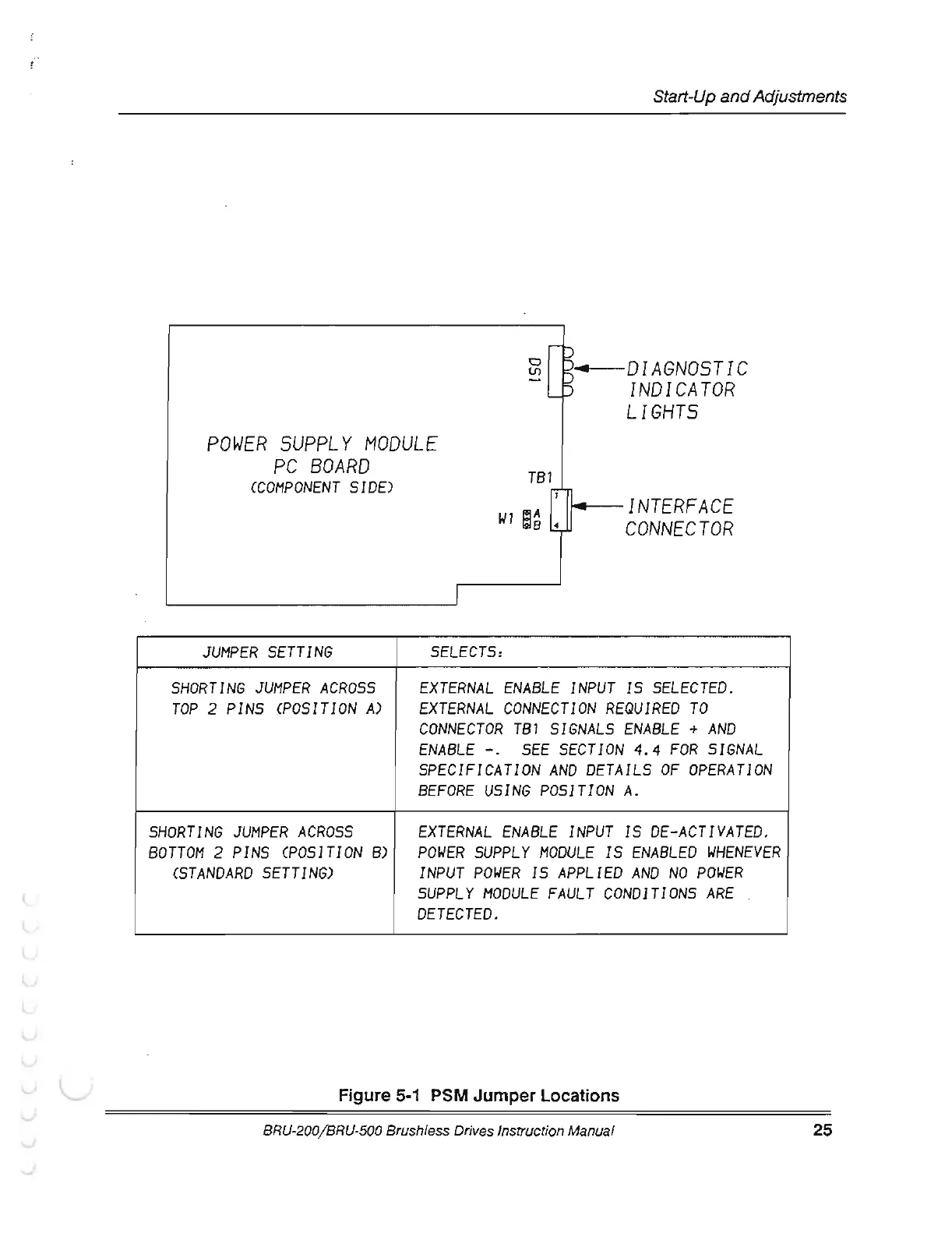

Figure 5-1 PSM Jumper Locations
BRU-200/BRU-500 Brushless Drives Instruction Manual 25
