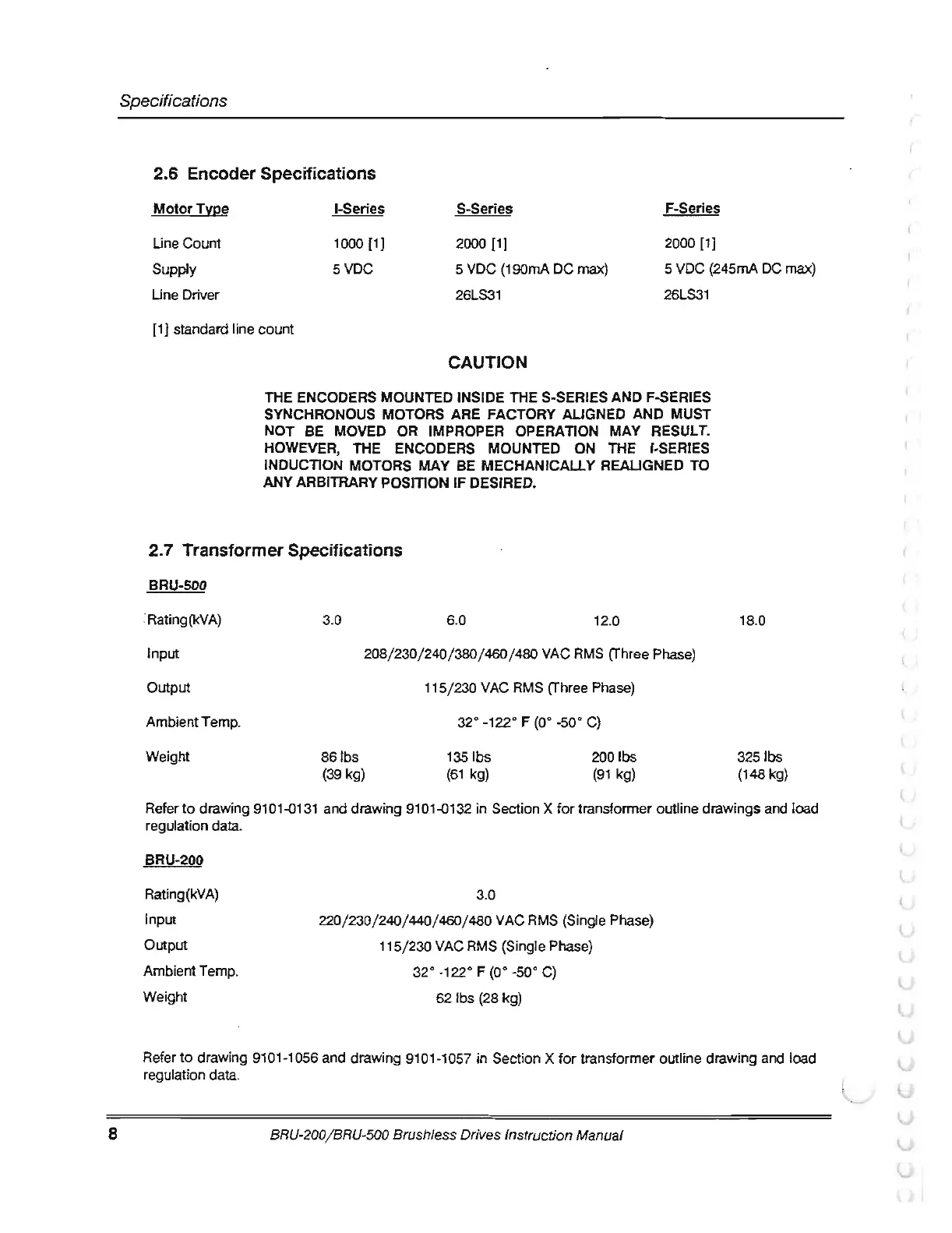

8
Specifications
2.6 Encoder Specifications
Motor
Type 1-Series S-Series
F-Series
2000 [1] 2000 [1]
UneCount
Supply
Une Driver
1000 [1]
5VDC
5 VDC (190mA DC
max)
26LS31
5 VDC (245mA DC max)
26LS31
{1) standard line count
CAUTION
THE ENCODERS MOUNTED INSIDE THE S-SERIES AND F-SERIES
SYNCHRONOUS MOTORS ARE FACTORY AUGNED AND MUST
NOT BE MOVED OR IMPROPER OPERATION MAY RESULT.
HOWEVER, THE ENCODERS MOUNTED ON THE I-SERIES
INDUCTION MOTORS MAY BE MECHANICALLY REAUGNED TO
ANY ARBITRARY POSITION IF DESIRED.
2.7 Transformer Specifications
BRU-500
. Rating(kVA)
3.0 6.0
12.0
Input
208/230/240/380/460/480
VAC
RMS
(Three Phase)
Output 115/230 VAC
RMS
(Three Phase)
Ambient Temp.
32°-122°
F (0°
-sao
C)
Weight
86lbs
1351bs
200ibs
(39 kg)
(61
kg)
(91
kg)
18.0
325lbs
(148 kg)
Refer
to
drawing 9101-0131 and drawing
9101-Q132
in Section X
for
transformer outline drawings and load
regulation data.
BRU-200
Rating(kVA)
Input
Output
Ambient Temp.
Weight
3.0
220/230/240/440/460/480 VAC RMS (Single Phase)
115/230 VAC
RMS
(Single Phase)
32° -122° F
(Oo
-sao
C)
62 lbs
(28
kg)
Refer
to
drawing 9101-1056 and drawing 9101-1057 in Section X
for
transformer outline drawing and load
regulation data.
BRU-200/BRU-500 Brushless Drives Instruction Manual
(
