Optional Accessories

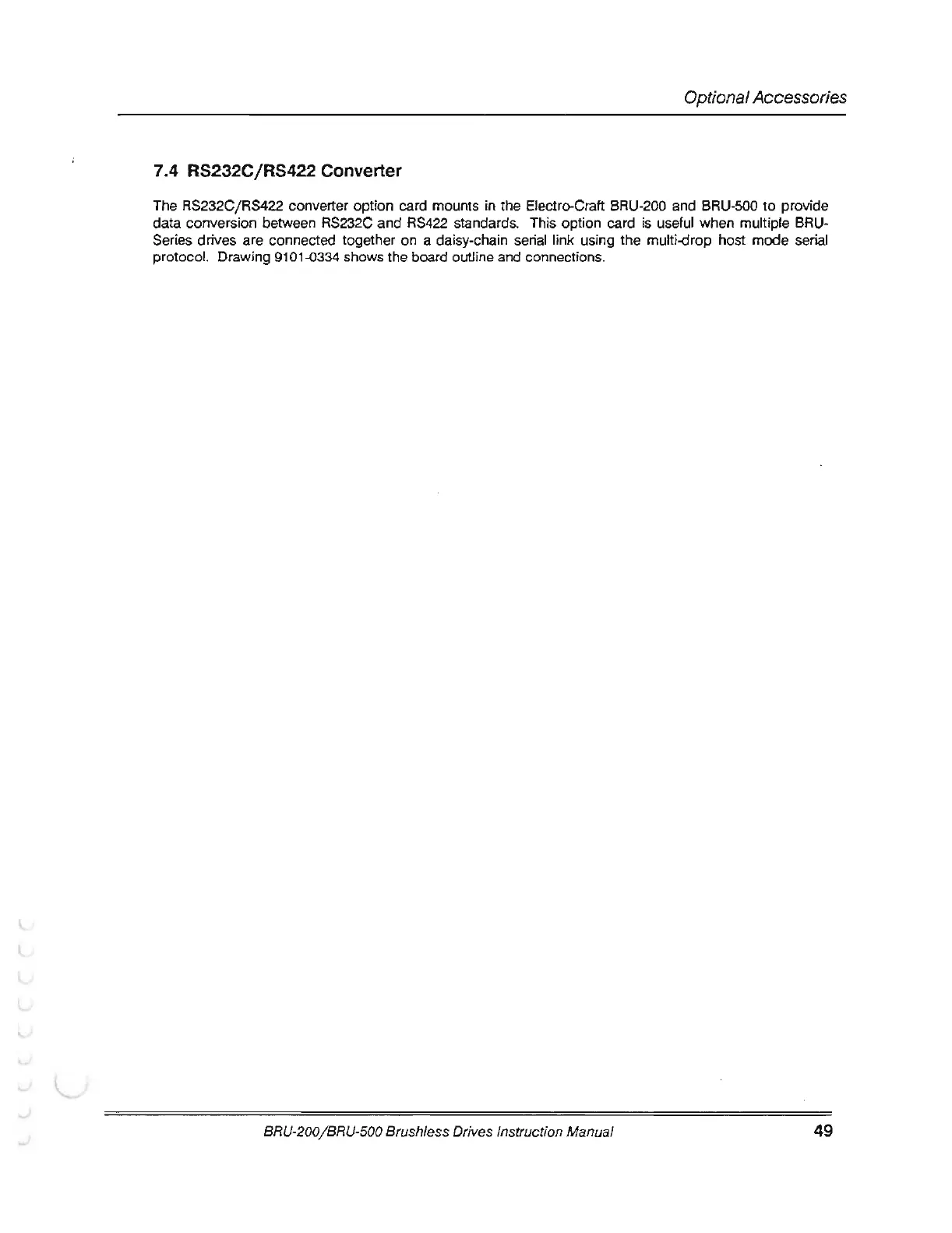

7.4 RS232C/RS422 Converter
The RS232C/RS422 converter option card mounts in the Electro-Craft BRU-200 and BRU-500
to
provide
data conversion between RS232C and
RS422
standards. This option card is useful when multiple BRU-
Series drives are connected together on a daisy-chain serial link using the multi-drop host mode serial
protocol. Drawing 9101-0334 shows the board outline and connections.
BRU-200/BRU-500 Brushless Drives Instruction Manual
49
