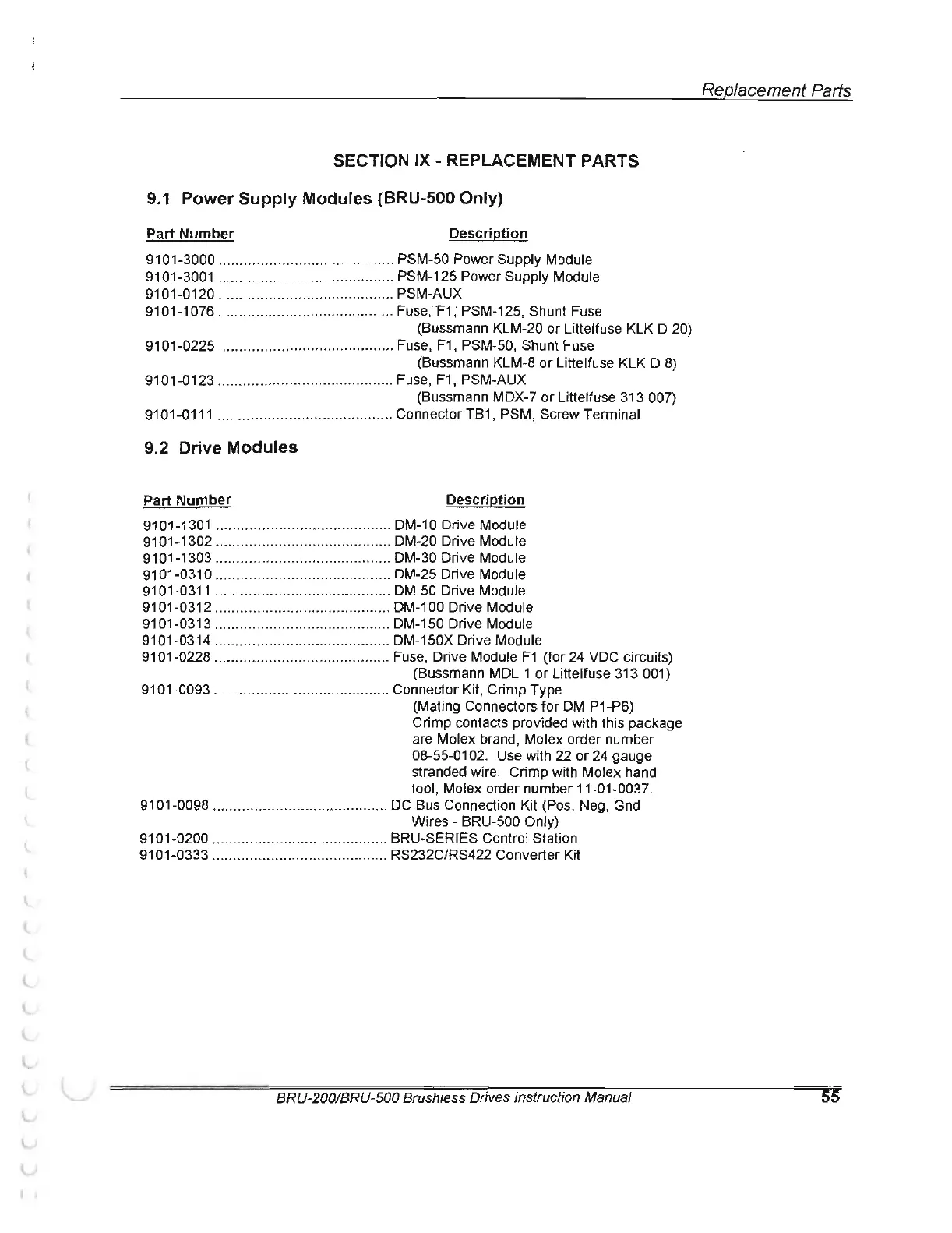

SECTION IX- REPLACEMENT PARTS
9.1 Power Supply Modules (BRU-500 Only)
Part Number Description
91 01-3000 ....... .. .. ............ ........ .. ..... .. .. PSM-50 Power Supply Module
91 01-3001 ........................... .. ............. PSM-125 Power Supply Module
9101-0120
.... .. .. ...... .. ...... .. .. .. .. .. .... .... .. PSM-AUX
9101-1076 .........
.. . .. .. .......... .. ............ .. Fuse; F1 ; PSM-125, Shunt Fuse
(Bussmann KLM-20
or Littelfuse KLK D 20)
91 01 -0225 .. ........................... .. .. . .... .. .. Fuse, F1 , PSM-50, Shunt Fuse
(Bussmann KLM-8
or Littelfuse KLK D 8)
9101-0123 ........
.. ... .. .. .. ....... .. ....... .. .. .. . Fuse, F1 , PSM-AUX
(Bussmann MDX-7
or Littelfuse 313 007)
9101-0111
.. ... .. .. .. ..................... .......... Connector TB1 , PSM, Screw Terminal
9.2 Drive Modules
Part Number Description
9101 -1301 .. ................ .. ... .. ................. DM-10 D ri ve Module
91 01-1302
.. .... .. .. .. .... .. ....... .. ............... DM-20 Drive Module
9101-1303
.. .......... .. ................. .. ....... .. DM-30 Drive Module
9101-0310 ..................
.. ........ .. .. .. .. .. .. .. DM-25 Drive Module
9101-0311 .......
.. .. ........... .. ...... .......... .. DM-50 Drive Module
9101-0312
.... .. .. .................. .. ... .. .. .. ..... DM -100 Drive Module
9101-0313
.... ...................... .. ....... .. ..... DM-150 Drive Module
9101-0314 ........
.. .................... .... ..... .. . DM-150X D ri ve Module
91 01-0228 .. .... .... .. .. .. ...... .. ..... .. ........... Fuse, Drive Module F1 (for 24 VDC circuits)
(Bussmann MDL 1
or Littelfuse 313 001)
9101-0093 ........
.. .. ............... .. ......... .. .. Connector Ki t, Crimp Type
(Mating Connectors f
or DM P1 -P6)
C
ri mp contacts provided with this package
are Molex brand, Molex order number
08-55-01 02. Use with 22
or 24 gauge
stranded wire. Crimp with Molex hand
tool, Molex order number 11-01-0037.
9101-0098 ...
.. ............ .. ................. .. .... DC Bus Connection Kit (Pos, Neg, Gnd
Wires - BRU-500 Only)
9101-0200 ....
.. .. .. .. ............. .. . .. .. .. ... .. .. . BRU-SERIES Control Station
9101-0333
.. .......... .. .... .. ........ .. ............ RS232C/RS422 Converter Kit
BRU -200/BRU-500 Brush/ es s Dr iv es Instruction Manu al
Replacement Parts
55
