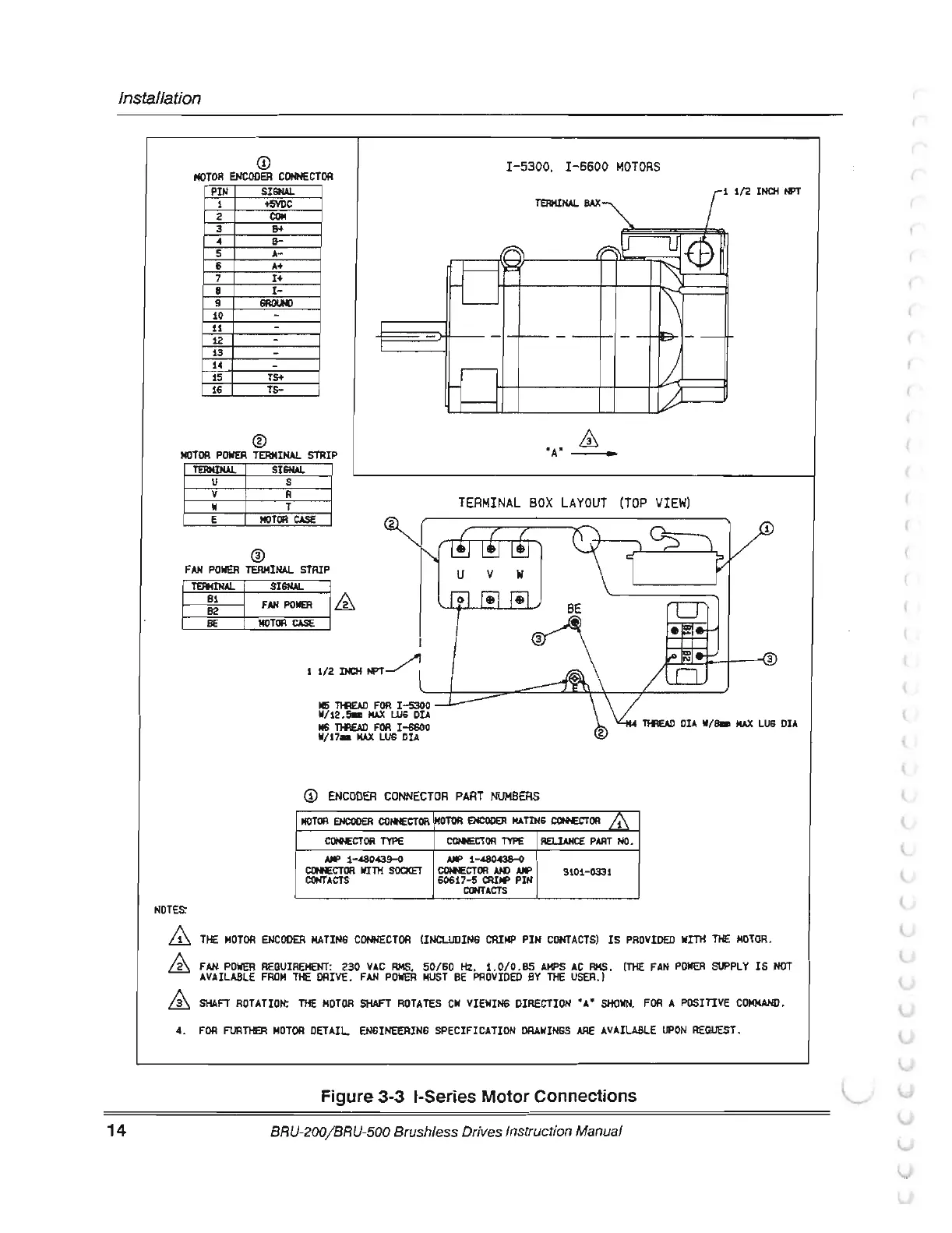

Electro-Craft BRU-200 - Figure 3-3 I -Series Motor Connections

Installation
14
<D
MOTOR ENCODER CONNECTOR
PDI SISNAL
1 +5VDC
2 COM
3 B+
4
8-
5 A-
6
A+
7 I+
8 I-
9 6AOIHl
10
-
11
-
12
-
13
-
14
-
15 TS+
16 Ts-
®
I«>TOR POWER TERMINAL STRIP
TaiiDW.. SISNAL
u s
v A
II
T
E I«>TOR CASE
®
FAN POWER TERMINAL STRIP
TEIIIIIW..
81
82
BE
SI6NAL
FAN POIIEA
MOTOR CASE
M5 TKIEAD FOR I -5300
ll/12.51a MAX LUG DIA
116 TKIEAD FOR I-6600
11 / 17• MAX LU6 DIA
I-5300, I-6600 MOTORS
"A"
TERMINAL BOX LAYOUT (TOP VIEW)
(D ENCODER CONNECTOR PAR T NUMBERS
MOTOR EHCOOER CONIECTOR !MoTOR ENCOilE.JI 11A TINS COllECTOR .&
COI*ECTOR TYPE
COllECTOR TYPE AEI.IANCE PART NO .
MIP 1-480439-0 AJif' 1-480438-0
COI*ECTOR IIIlli SOCKET CCNECTOR ANl AJif'
9101-G331
CONTACTS 60617-5 CRill' PIN
CONTACTS
NOTES:
1 1/2 INCH ,..,-
THE MOTOR ENCODER MATING CONNECTOR (INCLUDING CRIMP PIN CONTACTS) IS PROVIDED IIITH THE MOTOR .
& FAN POWER REQUIREMENT : 230 VAC RMS . 50/ 60 HZ. 1.0 / 0 . 85 AMPS AC RMS. (THE FAN POWER SUPPLY IS NOT
AVAILABLE FROM THE DRIVE . FAN POWER MUST BE PROVIDED BY THE US£R . )
& SHAFT ROTATION: THE MOTOR SHAFT ROTATES CW VIEWING DIRECTION "A" SHOIIN, FOR A POSITIVE COMMAND .
4 .
FOR FURTHER MOTOR DETAIL ENGINEERING SPECIFICATION DRAWINGS ARE AVAILABLE UPON REQUEST .
Figure 3-3 1-Series Motor Connections
BRU-200 /B RU- 500 Brus hl ess Dr ives Instruction Ma nu al
(
